What is the 2009 Ford F150 Towing Capacity? (Full Towing Charts)

If you own a 2009 Ford F150, or planning to purchase it, you must be curious to explore its towing, and hauling ability.

With a variety of models to meet your RV and Towing needs, the new 2009 F-150 is able to perform exceptionally well. From its best-in-class capabilities and long-lasting durability to its bold design and outstanding interior comfort, F-150 delivers at every turn.

In this blog, we will explore the 2009 Ford F150 Towing Capacity with towing features including standard trailer sway control, available integrated trailer brake controller, Tow/Haul mode, and the rearview camera.

Without further ado, let’s get started.

About 2009 Ford F150

The 2009 Ford F150 was available in three different cab configurations: Regular, SuperCab, and SuperCrew.

The superior handling, and responsiveness of the truck are backed by the fully boxed frame with hydroformed high-strength steel welded through-rail cross.

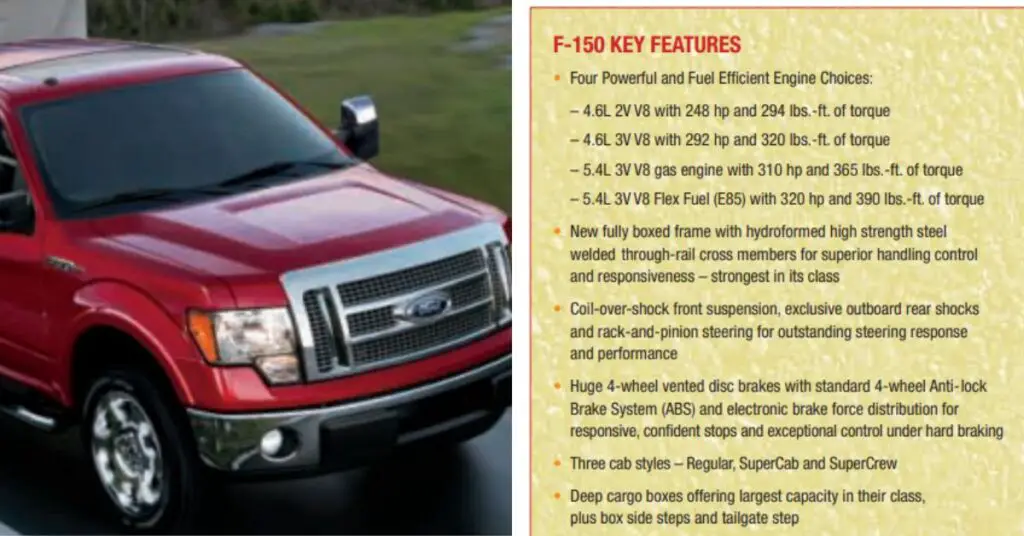

Other key features of the 2009 Ford F150

  • Coil-over-shock front suspension, exclusive outboard rear shocks, and rack-and-pinion steering for outstanding steering response and performance
  • Huge 4-wheel vented disc brakes with standard 4-wheel Anti-lock Brake System (ABS) and electronic brake force distribution for responsive, confident stops and exceptional control under hard braking Three cab styles – Regular, SuperCab and SuperCrew
  • Deep cargo boxes offering the largest capacity in their class, plus box side steps and tailgate step

2009 Ford F150 Engine Options

Four engine options were available for the 2009 Ford F150 including a 4.6L 2V V8, a 4.6L 3V V8, a 5.4L 3V V8, and a 5.4L 3V V8 engines.

ENGINEMAXIMUM POWERMAXIMUM TORQUE
4.6L 2V V8248 hp294 lb.-ft.
4.6L 3V V8292 hp320 lb.-ft.
5.4L 3V V8310 hp365 lb.-ft.
5.4L 3V V8 Flex Fuel (E85)320 hp390 lb.-ft.

2009 Ford F150 Towing Capacity

The towing capacity of the 2009 Ford F150 ranges from 5,500 lbs to 11,300 lbs depending on the cab configuration, engine specification, axle ratio, drivetrain, and other modifications.

Related: What is Towing Capacity?

2010 Ford F150 Towing Capacity Chart based on Engine Types

ENGINEMAXIMUM TOWING CAPACITY
4.6L 2V V85,500 lbs
4.6L 3V V88,200 lbs
5.4L 3V V811,300 lbs
5.4L 3V V8 Flex Fuel (E85)11,300 lbs

2009 Ford F150 Towing Capacity Chart (Regular Cab)

ENGINE TYPE4×2 TOWING CAPACITY4×4 TOWING CAPACITY
4.6L 2V V85,400 lbs (126” Wb, and 3.55 Axle Ratio)
5,500 lbs (145” Wb, and 3.55 Axle Ratio)
5,700 lbs (126” Wb, and 3.73 Axle Ratio)
5,800 lbs (145” Wb, and 3.73 Axle Ratio)
4.6L 3V V88,000 lbs (145” Wb, and 3.31 Axle Ratio)7,700 lbs (126” Wb, and 3.55 Axle Ratio)
7,800 lbs (145” Wb, and 3.55 Axle Ratio)
5.4L 3V V88,000 lbs (145” Wb, and 3.15 Axle Ratio)
11,300 lbs (145” Wb, and 3.73 Axle Ratio)
7,700 lbs (126” Wb, and 3.31 Axle Ratio)
7,800 lbs (145” Wb, and 3.31 Axle Ratio)
11,300 lbs (145” Wb, and 3.73 Axle Ratio)
2009 Ford F150 Towing Capacity

2009 Ford F150 Towing Capacity Chart (Super Cab)

ENGINE TYPE4×2 TOWING CAPACITY4×4 TOWING CAPACITY
4.6L 2V V85,200 lbs (132.5” Wb, and 3.55 Axle Ratio)
5,300 lbs (145” Wb, and 3.55 Axle Ratio)
5,400 lbs (133” Wb, and 3.73 Axle Ratio)
5,500 lbs (145” Wb, and 3.73 Axle Ratio)
4.6L 3V V87,800 lbs (132.5” Wb, and 3.31 Axle Ratio)
8,200 lbs (145” Wb, and 3.31 Axle Ratio)
7,500 lbs (133” Wb, and 3.55 Axle Ratio)
7,900 lbs (145” Wb, and 3.55 Axle Ratio)
5.4L 3V V87,800 lbs (132.5” Wb, and 3.15 Axle Ratio)
8,600 lbs (145” Wb, and 3.15 Axle Ratio)
11,300 lbs (163” Wb, and 3.73 Axle Ratio)
7,600 lbs (133” Wb, and 3.31 Axle Ratio)
8,300 lbs (145” Wb, and 3.31 Axle Ratio)
11,000 lbs (163” Wb, and 3.73 Axle Ratio)

2009 Ford F150 Towing Capacity Chart (Super Crew)

ENGINE TYPE4×2 TOWING CAPACITY4×4 TOWING CAPACITY
4.6L 2V V85,200 lbs (145” Wb, and 3.55 Axle Ratio)
5,100 lbs (157” Wb, and 3.55 Axle Ratio)
N/A
4.6L 3V V87,500 lbs (145” Wb, and 3.15 Axle Ratio)
8,000 lbs (157” Wb, and 3.31 Axle Ratio)
7,800 lbs (145” Wb, and 3.55 Axle Ratio)
7,600 lbs (157” Wb, and 3.55 Axle Ratio)
5.4L 3V V88,500 lbs (145” Wb, and 3.15 Axle Ratio)
8,400 lbs (157” Wb, and 3.15 Axle Ratio0
8,200 lbs (145” Wb, and 3.31 Axle Ratio)
8,100 lbs (157” Wb, and 3.31 Axle Ratio)
2009 Ford F150 Towing Capacity Explanation
If you want to explore the towing capacity of various model years of Ford F150, you can visit the article listed below.
2010 Ford F150 Towing Capacity
2011 Ford F150 Towing Capacity
2012 Ford F150 Towing Capacity
2013 Ford F150 Towing Capacity
2014 Ford F150 Towing Capacity
2015 Ford F150 Towing Capacity
2016 Ford F150 Towing Capacity
2017 Ford F150 Towing Capacity
2018 Ford F150 Towing Capacity
2019 Ford F150 Towing Capacity
2020 Ford F150 Towing Capacity
2021 Ford F150 Towing Capacity
2022 Ford F150 Towing Capacity
2023 Ford F150 Towing Capacity

Conclusion on 2009 Ford F150 Towing Capacity

We explored the towing capacity of the 2009 Ford F150 pickup truck along with complete towing charts.

The 2009 Ford F150 is capable of towing up to 11,300 lbs with the available maximum trailer tow package. Thanks to its 5.4L 3V V8 engine that offers a maximum power of 320 hp, and a peak torque of 390 lb.-ft.

This impressive capacity is further supported by features such as an integrated trailer brake controller, trailer tow mirrors, rearview camera, and neutral tow functionality for 4WD models.

The F150 also includes an upgraded rear bumper to support its Built Ford Tough credentials for towing and hauling.

There are towing packages available including traction bars, transmission coolers, brakes, hitches, and more to boost the towing capacity of your Ford F150.

Read this guide to increase the towing capacity of your vehicle.

However, you need to give your vehicle a test drive before departing on a long haul so that all settings are adjusted accordingly in order to avoid potential problems while out on the open roads!

Some safety protocols for safe towing

  • You should not exceed a trailer weight of 5,000 lbs. when towing with bumper only.
  • Trailer tongue load weight should be 10% of the total loaded trailer weight.
  • The combined weight of the vehicle, and trailer must not exceed the GCWR (Gross Combined Weight Rating) mentioned in the vehicle manual.
  • F150 owners must carefully read, and review the owner’s manual before using their pickup truck for towing purposes.
  • The maximum towing capacity may only be achieved when the 2021 F150 is equipped with a powerful engine, Max Trailer Tow Package, required tires, and wheels, and other towing accessories.
  • The towing capacity varies according to the vehicle configuration, cargo, number of passengers, available of towing accessories, and other customizations.
