Ford F150 is a powerful pickup truck that is introduced to offer power-packed performance with enhanced strength and capability. It is built with a high-strength military-grade, aluminum-alloy body, and a torture-tested high-strength steel frame.
The towing capacity of the 2022 F-150 models ranges from 8,200 lbs to a maximum of 14,000 lbs. On the other hand, the minimum and maximum towing capacity of the F-150 Lightning are 7,700 lbs and 8,600 lbs.
Table of Contents
There are 8 different models of the 2022 F-150 including the F-150 XL, F-150 XLT, F-150 LARIAT, F-150 King Ranch, F-150 Platinum, F-150 Limited, F-150 Tremor, and F-150 Raptor. The towing capacity and strength of these models are different based on the configuration, engine types, and power delivery which we will explore below.
As we discussed above, there are currently 8 different models of the 2022 Ford F-150. All models come with the standard engine configuration while there are optional choices for the optimized performance.
For instance, the F-150 XL (the lowest variant of the 2022 F-150) comes with the standard 3.3L Ti-VCT V6 engine that can produce a maximum power of 290 hp and a maximum torque of 265 lb.-ft. Customers can choose other options such as 2.7L EcoBoost V6, 3.5L EcoBoost V6, 5.0L Ti-VCT V8, and 3.5L PowerBoost Full Hybrid V6 engine.
The top variant F-150 Raptor is equipped with a 3.5L EcoBoost High-Output V6 Engine that delivers a maximum power of 450 hp and a maximum torque of 510 lb.-ft.
3.5 EcoBoostEngine
The 2022 Ford F-150 equipped with a 3.5L EcoBoost V6 engine can deliver an optimum power of 400hp at 6,000 rpm and a maximum torque of 500 lb.-ft. at 3,100 rpm. With this power delivery, a maximum towing capacity of 14,000 lbs is available.
A 3.5L EcoBoost V6 engine is standard in the F-150 Raptor, F-150 Tremor, and F-150 Limited while it is optional for other models including XL, XLT, LARIAT, and King Ranch.
3.5LPowerBoost Full Hybrid V6 Engine
A 3.5L PowerBoost Full Hybrid V6 Engine is also available for the 2022 Ford F-150 models. This powerful hybrid engine can produce a maximum power of 430hp at 6,000 rpm and a maximum torque of 570 lb.-ft. at 3,000 rpm. The maximum available towing capacity with this engine is 12,700 lbs.
The PowerBoost Full Hybrid V6 Engine is optionally available for Ford-F150 XL, XLT, LARIAT, King Ranch, Platinum, and Limited.
5.0L Ti-VCT V8 Engine
A 5.0L Ti-VCT V8 Engine delivers a total power of 400hp at 6,000 rpm and a maximum torque of 410 lb.-ft at 4,250 rpm. With this power delivery, the Ford F-150 can tow up to 13,000 lbs.

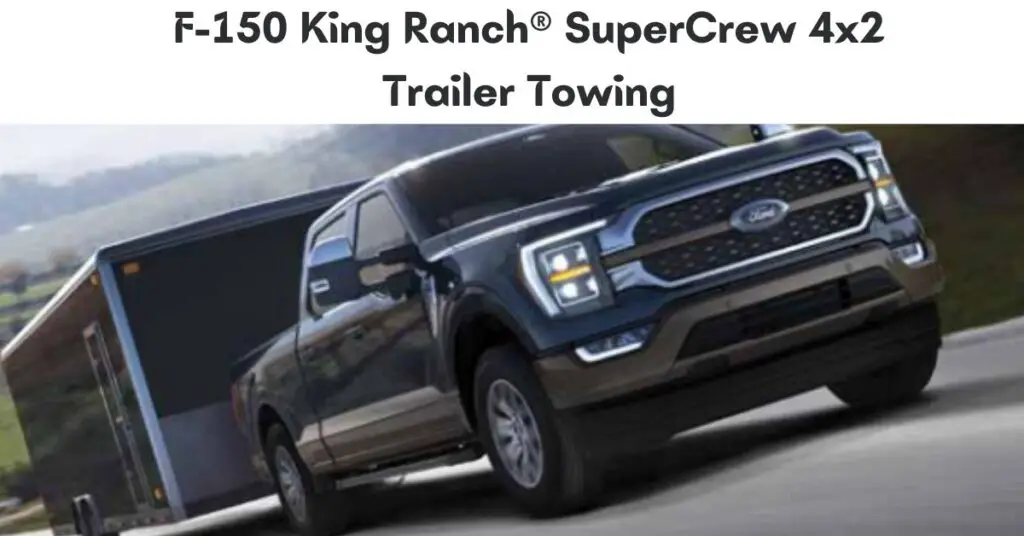

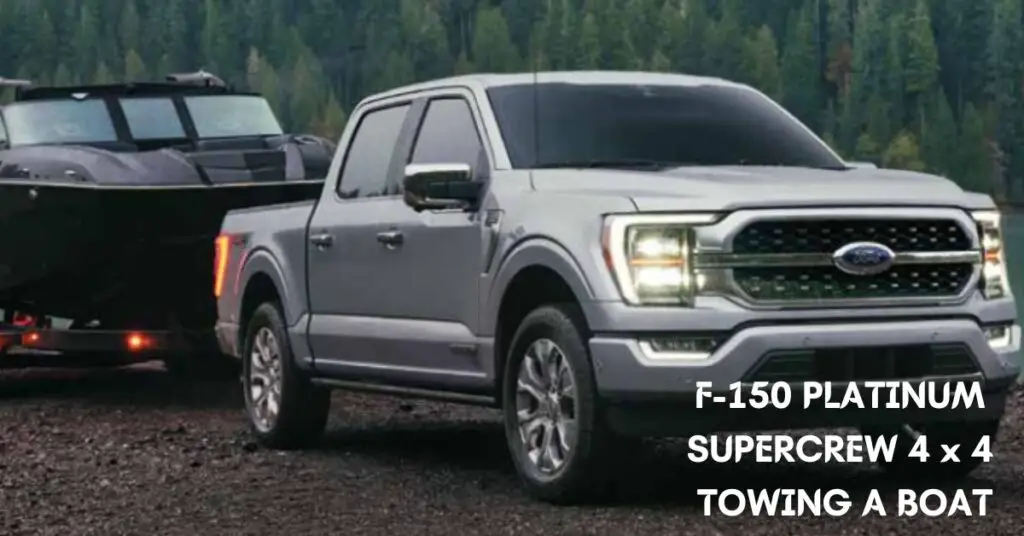

V8 Engine is standard in the F-150 King Ranch and F-150 Platinum whereas it is available optionally on F-150 XL, XLT, and LARIAT. However, it is not available for F-150 Limited, Tremor, and Raptor.
Towing Capacity of F150 V6
There are 4 different V6 engines available on the all-new 2022 F-150 Pickups which are 3.3L Ti-VCT V6, 2.7L EcoBoost V6, and 3.5L EcoBoost V6.
The 3.3L Ti-VCT V6 engine can deliver a maximum power of 290hp at 6,500rpm and a maximum torque of 265 lb.-ft at 4,000 rpm. It is standard and only available in F-150 XL and F-150 XLT models. The maximum towing capacity with this powertrain is 8,200 lbs.
The 2.7L EcoBoost V6 engine is standard in the F-150 LARIAT model while it is also available optionally for F-150 XL and XLT models. This engine can produce a total power of 325hp at 5,000 rpm and a maximum torque of 400 lb.-ft at 3,000 rpm. F-150s with this engine can tow up to a maximum of 10,100 lbs.
Likewise, the 3.5L EcoBoost V6 is standard in F-150 Raptor and F-150 Limited whereas it is optionally available for F-150 XL, XLT, LARIAT, King Ranch, and Platinum. This engine can provide enough power to tow up to 14,000 lbs. The maximum power generated by the engine is 400hp at 6,000 rpm while the torque is 500 lb.-ft at 3,100 rpm.
2022 Ford F-150Towing Capacity based on Engine Type
Type of Engine
Horsepower
Torque
Max Towing Capacity (lbs.)
Max Payload Capacity (lbs.)
3.3L Ti-VCT V6
290 hp @ 6,500 rpm
265 lb.-ft. @ 4,000 rpm
8,200
1,965
2.7L EcoBoost V6
325 hp @ 5,000 rpm
400 lb.-ft. @ 3,000 rpm
10,100
2,480
3.5L EcoBoost V6
400 hp @ 6,000 rpm
500 lb.-ft. @ 3,100 rpm
14,000
3,250
3.5L Full Hybrid V6
430 hp @ 6,000 rpm
570 lb.-ft. @ 3,000 rpm
12,700
2,120
5.0L Ti-VCT V8
400 hp @ 6,000 rpm
410 lb.-ft. @ 4,250 rpm
13,000
3,325
3.5L EcoBoost H. O. V6 (Available on F-150 Raptor Only)
450 hp @ 5,850 rpm
510 lb.-ft. @ 3,000 rpm
8,200
1,400
2022 Ford F150 Lightning towing capacity
Ford F150 Lightning is an all-electric pickup truck that is built to deliver a power-packed performance with serious toughness and unbelievable handling in all driving situations. An advanced lithium-ion battery pack is used to deliver power to the electric motor of the F150 Lightning.
With this configuration, F-150 Lightning offers an EPA-estimated range of 230+ miles on a single charge. Besides, it is also available with an extended-range battery that can provide an overall range of 300+ miles.
As Towing Capacity is concerned, the all-new powerful F-150 Lightning offers a towing capacity ranging from 7,700 lbs to 8,600 lbs depending on the mode. The Ford F-150 Lightning offers amazing towing capability which is made possible due to the availability of 775 lb.-ft of easy-to-modulate torque. It is always ready to accomplish the job when it comes to pulling a boat out of the water or pulling away from a traffic light with a loaded bed.
Axle Ratio
Drive Type
GCWR (lbs.)
WB
Max Towing Capacity (lbs.)
9.61
4×4
11,700
145.4″
5,000
9.61
4×4
14,400
145.4″
7,700
9.61
4×4
15,000
145.4″
7,700
9.61
4×4
15,900
145.4″
8,500
9.61
4×4
16,700
145.4″
9,600
9.61
4×4
17,300
145.4″
10,000
2022 Ford F150 Maximum Cargo Weight With Slide-In Camper
The following chart lists GVWRs and Maximum Cargo Weights (with minimum equipment) by the engine for each approved pickup model: 3.5L V6 EcoBoost and 5.0L V8.
The cargo Weight Rating shown in the chart is the maximum allowable, assuming the weight of a base vehicle with required camper option content and a 150-lb. passenger at each available seating position.
3.5L GTDI V6
Cab Type
Drive Type
Wheelbase
GVWR (lbs.)
Maximum Cargo Weight Rating (lbs.)
Regular Cab
4×2
141.5″
7,850
2,780
SuperCab
4×2
164.1″
7,850
2,064
SuperCrew
4×2
157.2″
7,850
1,963
Regular Cab
4×4
141.5″
7,850
2,566
SuperCab
4×4
164.1″
7,850
1,824
SuperCrew
4×4
157.2″
7,850
1,721
Requires Heavy-Duty Payload Package option.
5.0L 4-Valve V8
Cab Type
Drive Type
Wheelbase
GVWR (lbs.)
Maximum Cargo Weight Rating (lbs.)
Regular Cab
4×2
141.5″
7,850
2,856
SuperCab
4×2
164.1″
7,850
2,093
SuperCrew
4×2
157.2″
7,850
1,980
Regular Cab
4×4
141.5″
7,850
2,583
SuperCab
4×4
164.1″
7,850
1,848
SuperCrew
4×4
157.2″
7,850
1,731
Requires Heavy-Duty Payload Package option.
2022 Ford F150 Regular Cab Conventional Towing
[Regular Cab 4X2]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
9,400
5,000
3.55
141.5″
9,500
5,000
3.73
122.8″
12,700
8,200
3.73
141.5″
12,800
8,200
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
122.8″
13,100
8,300
3.15
141.5″
14,800
9,900
3.31
122.8″
13,100
8,300
3.31
141.5″
14,800
9,900
3.73
122.8″
13,900
9,100
3.73
141.5″
15,300
10,400
3.73
141.5″
17,900
13,000
3.73
141.5″
18,100
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
12,200
7,600
3.55
141.5″
12,300
7,600
3.73
122.8″
13,200
8,600
3.73
141.5″
13,300
8,600
3.73
141.5″
14,900
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
141.5″
16,200
11,200
3.55
141.5″
16,200
11,200
3.55
141.5″
18,000
13,000
3.73
141.5″
18,500
13,300
[Regular Cab 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
9,800
5,000
3.73
122.8″
12,900
8,100
3.73
141.5″
12,900
8,100
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
122.8″
13,200
8,200
3.31
141.5″
14,900
9,700
3.73
122.8″
14,600
9,600
3.73
141.5″
15,700
10,500
3.73
141.5″
18,000
12,800
3.73
141.5″
18,300
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
12,600
7,700
3.55
141.5″
12,700
7,700
3.73
122.8″
13,400
8,500
3.73
141.5″
13,400
8,400
3.73
141.5″
15,100
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
141.5″
16,500
11,200
3.55
141.5″
16,500
11,200
3.55
141.5″
18,000
12,700
3.73
141.5″
18,500
13,100
2022 Ford F150 Super Cab Conventional Towing
[SuperCab 4X2]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
9,900
5,100
3.73
145.4″
13,000
8,200
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
145.4″
14,800
9,700
3.15
164.1″
14,800
9,600
3.31
145.4″
14,800
9,700
3.31
164.1″
14,800
9,600
3.73
145.4″
15,600
10,500
3.73
164.1″
15,600
10,400
3.73
145.4″
17,900
12,800
3.73
164.1″
18,200
13,000
3.73
164.1″
18,400
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,700
7,700
3.55
164.1″
12,700
7,600
3.73
145.4″
13,400
8,400
3.73
164.1″
13,400
8,300
3.73
145.4″
15,000
10,000
3.73
164.1″
15,100
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,300
11,000
3.31
164.1″
16,600
11,200
3.55
145.4″
16,300
11,000
3.55
164.1″
16,600
11,200
3.55
145.4″
17,600
12,300
3.55
164.1″
19,400
14,000
3.73
164.1″
19,400
14,000
[SuperCab 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
13,200
8,100
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
14,900
9,500
3.31
164.1″
14,900
9,400
3.73
145.4″
15,900
10,500
3.73
164.1″
15,900
10,400
3.73
145.4″
17,700
12,300
3.73
164.1″
18,500
13,000
3.73
164.1″
18,600
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,800
7,600
3.73
145.4″
13,300
8,100
3.73
145.4″
15,400
10,100
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,600
11,100
3.31
164.1″
16,900
11,200
3.55
145.4″
16,600
11,100
3.55
164.1″
16,900
11,200
3.55
145.4″
17,700
12,100
3.55
164.1″
19,500
13,800
3.73
164.1″
19,500
13,800
2022 Ford F150 Super Crew Conventional Towing
[Super Crew 4X2]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
10,000
5,100
3.73
145.4″
13,000
8,100
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
145.4″
14,800
9,600
3.15
157.2″
14,800
9,600
3.31
145.4″
14,800
9,600
3.31
157.2″
14,800
9,600
3.73
157.2″
15,600
10,400
3.73
145.4″
15,700
10,500
3.73
145.4″
18,100
12,900
3.73
157.2″
18,200
13,000
3.73
157.2″
18,500
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,800
7,700
3.55
157.2″
12,900
7,800
3.73
145.4″
13,400
8,300
3.73
157.2″
13,400
8,300
3.73
145.4″
15,200
10,000
3.73
157.2″
15,200
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,500
11,200
3.31
157.2″
16,700
11,300
3.55
145.4″
16,500
11,200
3.55
157.2″
16,800
11,300
3.55
145.4″
19,400
13,900
3.55
157.2″
19,400
14,000
3.73
157.2″
19,500
14,000
3.5L Hybrid V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
16,800
11,000
3.55
157.2″
16,900
11,000
3.55
145.4″
18,500
12,700
3.55
157.2″
18,500
12,700
[Super Crew 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
13,400
8,200
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
14,800
9,400
3.31
157.2″
14,800
9,300
3.73
145.4″
15,800
10,400
3.73
157.2″
15,800
10,300
3.73
145.4″
18,400
13,000
3.73
157.2″
18,400
12,900
3.73
157.2″
18,700
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
13,000
7,700
3.73
145.4″
13,400
8,100
3.73
145.4″
15,500
10,100
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,800
11,200
3.31
157.2″
16,800
11,200
3.55
157.2″
16,800
11,200
3.55
145.4″
16,900
11,300
3.55
145.4″
19,400
13,800
3.55
157.2″
19,400
13,800
3.73
145.4″
17,100
11,000
3.73
157.2″
19,500
13,700
3.5L GTDI V6 H. O.
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
4.10
145.4″
14,500
8,200
4.10
145.4″
14,575
8,200
3.5L Hybrid V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
17,100
11,000
3.73
157.2″
17,100
11,000
3.73
145.4″
18,400
12,300
3.73
157.2″
18,400
12,300
2022 Ford F150 Regular Cab 5th Wheel Towing
[Regular Cab 4X2 ]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
9,500
5,000
3.55
141.5″
9,600
5,000
3.73
122.8″
12,700
8,200
3.73
141.5″
12,800
8,200
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
122.8″
13,100
8,300
3.15
141.5″
14,800
9,800
3.31
122.8″
13,100
8,300
3.31
141.5″
14,800
9,800
3.73
122.8″
13,900
9,100
3.73
141.5″
15,300
10,300
3.73
141.5″
17,900
12,000
3.73
141.5″
18,100
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
12,200
7,500
3.55
141.5″
12,300
7,500
3.73
122.8″
13,200
8,500
3.73
141.5″
13,300
8,500
3.73
141.5″
14,900
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
141.5″
16,200
11,200
3.55
141.5″
16,200
11,200
3.55
141.5″
18,000
13,000
3.73
141.5″
18,500
13,300
[Regular Cab 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
9,800
5,000
3.73
122.8″
12,900
8,100
3.73
141.5″
12,900
8,000
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
122.8″
13,200
8,100
3.31
141.5″
14,900
9,700
3.73
122.8″
14,600
9,000
3.73
141.5″
15,700
10,500
3.73
141.5″
18,000
11,700
3.73
141.5″
18,300
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
122.8″
12,600
7,600
3.55
141.5″
12,700
7,600
3.73
122.8″
13,400
8,300
3.73
141.5″
13,400
8,300
3.73
141.5″
15,100
9,900
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
141.5″
16,500
11,200
3.55
141.5″
16,500
11,200
3.55
141.5″
18,000
11,700
3.73
141.5″
18,500
13,000
2022 Ford F150 Super Cab 5th Wheel Towing
[SuperCab 4X2]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
9,900
5,000
3.73
145.4″
13,000
8,100
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
145.4″
14,800
9,600
3.15
164.1″
14,800
9,500
3.73
145.4″
15,600
10,400
3.73
164.1″
15,600
10,300
3.73
145.4″
17,900
11,100
3.73
164.1″
18,200
11,800
3.73
164.1″
18,400
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,700
7,700
3.55
164.1″
12,700
7,600
3.73
145.4″
13,400
8,400
3.73
164.1″
13,400
8,300
3.73
145.4″
15,000
9,900
3.73
164.1″
15,100
9,900
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,300
10,100
3.31
164.1″
16,600
10,900
3.55
145.4″
16,300
10,100
3.55
164.1″
16,600
10,900
3.55
145.4″
17,600
10,100
3.55
164.1″
19,400
10,900
3.73
164.1″
19,400
13,900
[SuperCab 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
13,200
8,100
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
14,900
9,500
3.31
164.1″
14,900
9,400
3.73
145.4″
15,900
10,500
3.73
164.1″
15,900
10,400
3.73
145.4″
17,700
10,700
3.73
164.1″
18,500
11,100
3.73
164.1″
18,600
12,900
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,800
7,500
3.73
145.4″
13,300
8,000
3.73
145.4″
15,400
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,600
9,900
3.31
164.1″
16,900
9,700
3.55
145.4″
16,600
9,900
3.55
164.1″
16,900
9,700
3.55
145.4″
17,700
9,900
3.55
164.1″
19,500
9,700
3.73
164.1″
19,500
13,800
2022 Ford F150 Super Crew 5th Wheel Towing
[Super Crew 4X2]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
10,000
5,000
3.73
145.4″
13,000
8,000
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.15
145.4″
14,800
9,600
3.15
157.2″
14,800
9,500
3.31
145.4″
14,800
9,600
3.31
157.2″
14,800
9,500
3.73
157.2″
15,600
10,300
3.73
145.4″
15,700
10,500
3.73
145.4″
18,100
12,000
3.73
157.2″
18,200
11,400
3.73
157.2″
18,500
13,000
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
12,800
7,700
3.55
157.2″
12,900
7,800
3.73
145.4″
13,400
8,100
3.73
157.2″
13,400
8,300
3.73
145.4″
15,200
9,900
3.73
157.2″
15,200
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,500
9,500
3.73
157.2″
16,700
10,800
3.55
145.4″
16,500
9,500
3.55
157.2″
16,700
10,800
3.55
145.4″
19,300
11,100
3.55
157.2″
19,400
10,800
3.73
157.2″
19,500
14,000
3.5L Hybrid V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
16,800
10,200
3.55
157.2″
16,900
10,400
3.55
145.4″
18,500
10,200
3.55
157.2″
18,500
10,400
[Super Crew 4X4]
3.3L PFDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
13,400
8,200
5.0L 4-Valve V8
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
14,800
9,300
3.31
157.2″
14,800
9,200
3.73
145.4″
15,800
10,300
3.73
157.2″
15,800
10,200
3.73
145.4″
18,400
10,800
3.73
157.2″
18,400
10,700
3.73
157.2″
18,700
12,900
2.7L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.55
145.4″
13,000
7,600
3.73
145.4″
13,400
8,000
3.73
145.4″
15,500
10,000
3.5L GTDI V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.31
145.4″
16,800
9,800
3.31
157.2″
16,800
10,100
3.55
145.4″
16,800
9,800
3.55
157.2″
16,800
10,100
3.55
145.4″
19,400
9,800
3.55
157.2″
19,400
10,100
3.73
145.4″
17,100
9,000
3.73
157.2″
19,500
13,700
3.5L Hybrid V6
Axle Ratio
WB
GCWR (lbs.)
Max Tow Capacity (lbs.)
3.73
145.4″
17,100
8,500
3.73
157.2″
17,100
8,300
3.73
145.4″
18,400
8,500
3.73
157.2″
18,400
8,300
Which F-150 has the most towing capacity?
The Ford F-150 powered by a 3.5L EcoBoost V6 engine has the highest towing capacity of up to 14,000 lbs. This power configuration is standard on F-150 Limited and F-150 Raptor. Besides, models including F-150 XL, XLT, LARIAT, King Ranch, and Platinum can be equipped with this engine optionally.
The maximum towing capacity of 14,000 lbs is available on SuperCab 8’ box (4 x 2 configuration) and SuperCrew (4 x 2 configuration) powered by the 3.5L EcoBoost V6 engine and equipped with Max Trailer Tow Package.
Can a Ford F-150 tow 10,000 lbs?
The Ford F-150 models have a towing capacity ranging from 8,200 lbs to 14,000 lbs depending on the engine type, vehicle configuration, cargo, accessories, and the number of passengers.
F-150s powered by 2.7L EcoBoost V6, 3.5L PowerBoost Full Hybrid V6, 5.0L Ti-VCT V8, and 3.5L EcoBoost V6 engine can tow more than 10,000 lbs (14,000 lbs maximum).
What does the F-150 Tow Package include?
The Ford F150 offers various towing features which are listed below.
Stellan Carter is an accomplished writer, entrepreneur, and avid Ford Raptor owner. As a co-founder and content contributor for this renowned blog website, Stellan brings a wealth of knowledge and expertise to the automotive industry. When he's not behind the wheel of his beloved Ford Raptor, Stellan can be found exploring new terrains, capturing the essence of his automotive adventures through his camera lens.
