The 2002 Ford Ranger is one of America’s most popular compact pickups in the truck segment. The Ranger’s mix of capability, reliability, durability, and functional value too just as tough as ever. In this article let’s take a look at the trim, cab styles, options, and the 2002 Ford Ranger towing capacity in detail.
The 2002 Ford Ranger stands tall with an impressive maximum trailer towing capacity of 6,020 pounds. This remarkable feat is achieved by vehicles that are meticulously equipped, ensuring optimal towing performance without any additional cargo onboard. The maximum payload capacity is 1,640 pounds.
With this robust capability, the 2002 Ford Ranger proves itself a reliable companion for hauling tasks, promising a seamless towing experience for those seeking both power and efficiency.
Table of Contents
Maximum capabilities shown are for properly equipped vehicles with the required equipment and a 150-lb. driver. The weight of additional options, equipment, passengers, and cargo must be deducted from this weight. The ranger does not have an electric brake wiring provision. It requires electric trailer brakes over a specified trailer weight.
Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover, and personal injury. For additional information, see your owner’s manual.
2002 Ford Ranger towing capacity chart
| 2002 Ford Ranger trim levels | 2002 Ford Ranger towing capacity |
| Ford Ranger XL | 1,480 – 6,040 lbs. |
| Ford Ranger Edge | 1,480 – 6,040 lbs. |
| Ford Ranger XLT | 1,480 – 6,040 lbs. |
| Ford Ranger FX4 | 2,220 – 3,140 lbs. |
| Ford Ranger TREMOR | 3,780 – 5,880 lbs. |
2002 Ford Ranger Engine Specs
A proven engine makes Ranger an adventure machine, providing excellent torque for towing or climbing trails. Whether you choose the 4×2 or 4×4 drivetrain or explore all five trim levels, you’ll find a towing capacity that is further noteworthy of any pickup truck.
The sophisticated intake and exhaust camshaft profiles, throttle body, exhaust manifold design, and engine control calibration help boost highway performance. The engine produces solid horsepower and torque in a compact, efficient package and is a rugged, reliable powerplant consistently. The 2002 Ford Ranger has a three-engine option to choose from which are listed below.
| Engine Type | 2.3L I-4 Engine | 3.0L V6 Engine | 4.0L V6 Engine |
| Maximum Power | 135 hp@ 5,250rpm | 154 hp @ 5,200rpm | 207 hp@ 5,250rpm |
| Maximum Torque | 154 lb.-ft.@ 3,750rpm | 180 lb.-ft. @ 3,900rpm | 238 lb.-ft.@ 3,000rpm |
[2002 Ford Ranger Regular Cab]
Regular Cab 4×2 with Manual transmission
| Engine | Box Size | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 2.3L | 6’ box | 4,800 | 1,660 |
| 2.3L | 7’ box | 4,800 | 1,600 |
| 3.0L (non-torsion bar suspension) | 6’ box | 6,000 | 2,660 |
| 3.0L (torsion bar suspension) | 6’ box | 6,000 | 2,540 |
| 3.0L | 7’ box | 6,000 | 2,600 |
| 4.0L (non-torsion bar suspension) | 6’ box | 7,000 | 3,580 |
| 4.0L (torsion bar suspension) | 6’ box | 7,000 | 3,460 |
| 4.0L | 7’ box | 7,000 | 3,520 |
Regular Cab 4×4 with Manual transmission
| Engine | Box Size | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 3.0L | 6’ box | 6,000 | 2,380 |
| 3.0L | 7’ box | 6,000 | 2,340 |
| 4.0L | 6’ box | 7,000 | 3,320 |
| 4.0L | 7’ box | 7,000 | 3,260 |
Regular Cab 4×2 with Automatic transmission
| Engine | Box Size | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 2.3L | 6’ box | 5,500 | 2,260 |
| 2.3L | 7’ box | 5,500 | 2,220 |
| 3.0L (non-torsion bar suspension) | 6’ box | 7,500 | 4,120 |
| 3.0L (torsion bar suspension) | 6’ box | 7,500 | 4,000 |
| 3.0L | 7’ box | 7,500 | 4,060 |
| 4.0L (non-torsion bar suspension) | 6’ box | 9,500 | 6,040 |
| 4.0L (torsion bar suspension) | 6’ box | 9,500 | 5,920 |
| 4.0L | 7’ box | 9,500 | 5,980 |
Regular Cab 4×4 with Automatic transmission
| Engine | Box Size | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 3.0L | 6’ box | 7,500 | 3,860 |
| 3.0L | 7’ box | 7,500 | 3,800 |
| 4.0L | 6’ box | 9,500 | 5,780 |
| 4.0L | 7’ box | 9,500 | 5,720 |
Note : Maximum trailer weight is shown. The combined weight of the completed towing vehicle (including hitch, passengers and cargo) and the loaded trailer must not exceed the Gross Combined Weight Rating (GCWR).
[2002 Ford Ranger SuperCab]
SuperCab 4×2 with Manual transmission
| Engine | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 2.3L | 4,800 | 1,480 |
| 3.0L (non-torsion bar suspension) | 6,000 | 2,480 |
| 3.0L (torsion bar suspension) | 6,000 | 2,320 |
| 4.0L (non-torsion bar suspension) | 7,000 | 3,400 |
| 4.0L (torsion bar suspension) | 7,000 | 3,260 |
SuperCab 4×4 with Manual transmission
| Engine | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 3.0L | 6,000 | 2,220 |
| 4.0L | 7,000 | 3,140 |
| 4.0L (FX4 package) | 7,000 | 2,720 |
SuperCab 4×2 with Automatic transmission
| Engine | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 3.0L (non-torsion bar suspension) | 7,500 | 3,940 |
| 3.0L (torsion bar suspension) | 7,500 | 3,780 |
| 4.0L(non-torsion bar suspension) | 9,500 | 5,880 |
| 4.0L (torsion bar suspension) | 9,500 | 5,720 |
SuperCab 4×4 with Automatic transmission
| Engine | GCWR (lbs.) | Maximum trailer weight (lbs.) |
| 3.0L | 7,500 | 3,680 |
| 4.0L | 9,500 | 5,600 |
| 4.0L (FX4 package) | 9,500 | 5,180 |
2002 Ford Ranger trims
A wide selection of body styles, trim levels, and options lets you build the truck that fits your work style and your lifestyle. Available in five trim levels XL, XLT, FX4, Edge, and Tremor the Ranger is enhanced to provide greater fuel efficiency.
Whether your idea of fun is 4X4 adventure or high-powered audio, a huge selection of body styles, trim levels, and options lets you build the truck that fits your work style and your lifestyle. Let’s find out more about all the details on the 2002 Ford Ranger trim levels below.

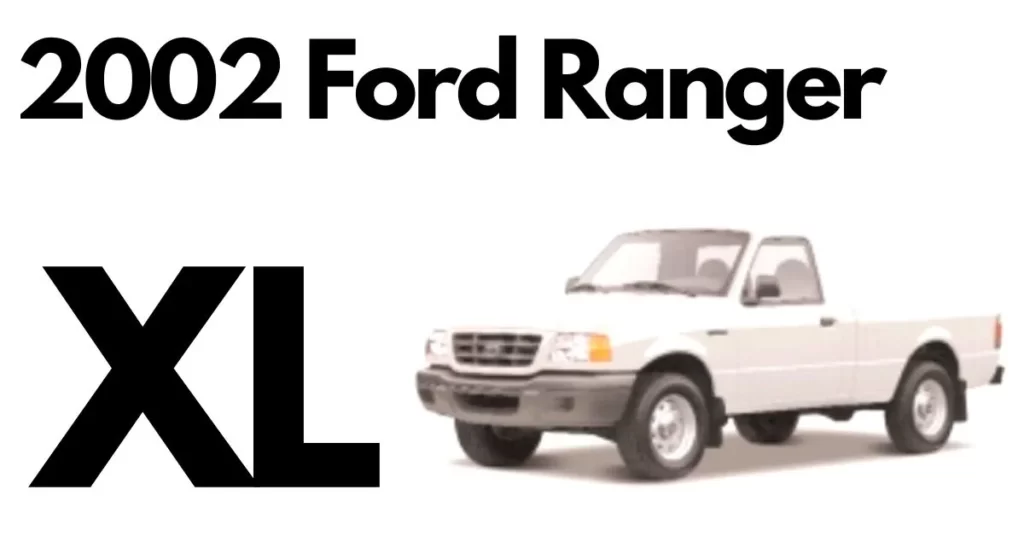

2002 Ford Ranger XL
The 2002 Ford Ranger XL trim maximum towing capacity of the 2002 Ford XL trim is between 1,480 to 6,040 pounds when properly equipped. Available models are 4X2 RegularCab and 4X2 SuperCab 2-door.
All the essential features that make the Ranger pickup the right choice for every next adventure. The highlighted features are 15″ argent styled-steel wheels, Dual fold-away black side mirrors, Driver and front passenger airbags with manual passenger deactivation, 4-wheel anti-lock brake system (ABS), SecuriLock passive anti-theft system, Styleside bed, Speed-sensitive intermittent wipers, Quick-release tailgate,12-volt power point, AM/FM stereo w/clock, Mud flaps, 60/40 vinyl split-bench seat, and Gas shocks.

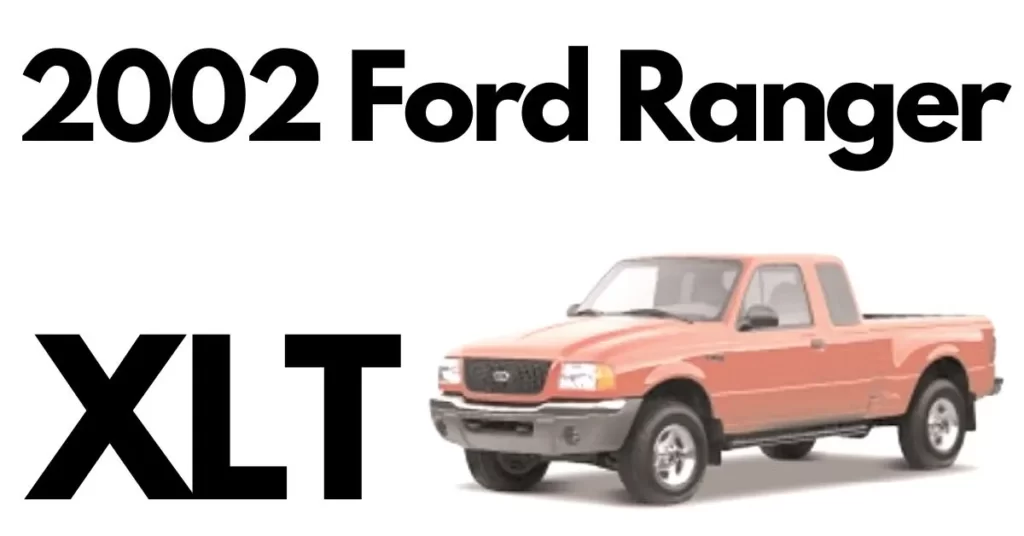

2002 Ford Ranger XLT
When equipped properly 2002 Ford Ranger XLT trim can tow up to 6,040 pounds. Available models are 4X2 Regular cab, 4X2 SuperCab 2-door, 4X2 SuperCab 4-door, 4X4 SuperCab 2-door, and 4X4 SuperCab 4-door.
The 2002 Ford Ranger XLT includes all Ranger XL features, plus more than ergonomics. The highlighted features are 16″ cast aluminum wheels, Chrome grille – 4×2 bars, 4×4 honeycomb, Chrome front, and rear step bumper, Courtesy lights (cargo box and map), Door panel map pockets, Color-keyed carpeting, carpeted floor mats, Cloth 60/40 split-bench seat, AM/FM stereo/CD player with clock, Platinum-colored mud flaps, Platinum-colored wheel-lip moldings (4×4 Styleside only), and Color-keyed visors.

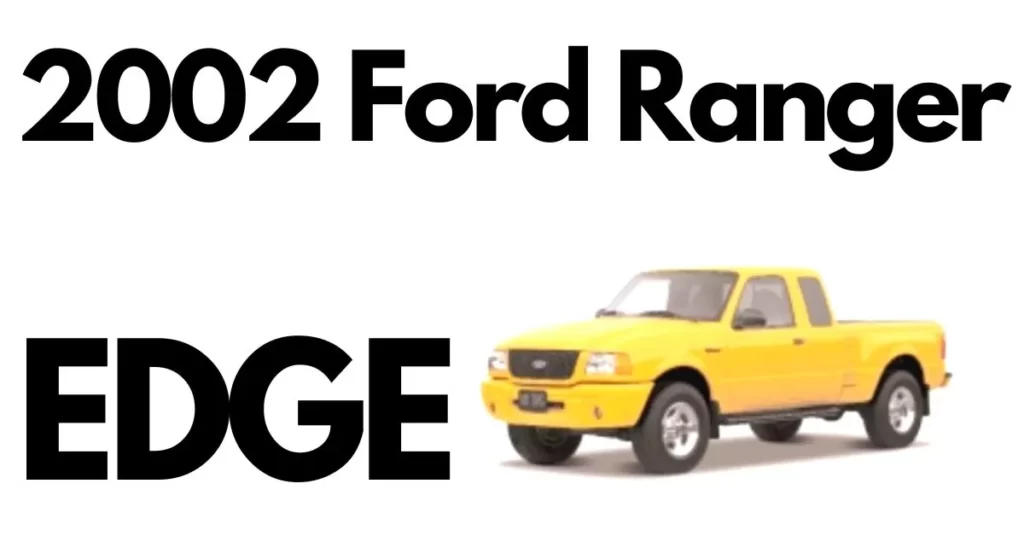

2002 Ford Ranger Edge
It can tow between a maximum of 1,480 to 6,040 pounds when equipped properly. Available models are 4X2 Regular Cab, 4X2 Regular Cab, 4X2 SuperCab 2-door, 4X2 SuperCab 4-door, 4X4 SuperCab 2-door, and 4X4 SuperCab 4-door.
The 2002 Ford Ranger Edge trim highlighted features are 16″ 5-spoke cast-aluminum wheels, Fog lamps, AM/FM stereo w/single CD player, 4-speakers and digital clock, Cloth 60/40 split-bench seat, Spare tire access lock, Color-keyed bumpers and wheel-lip moldings, Manual styled mirrors, Honeycomb styled grille, Textured vinyl floor covering, Passenger assist handle, Front tow hooks (4×4 only), Bed rail covers, and Carpeted floor mats.
2002 Ford Ranger FX4
The only available model is a 4X4 SuperCab 4-door when equipped properly it can tow between 2,220 to 3,140 pounds.
The 2002 Ford Ranger FX4 trim highlighted features are black wheel-lip moldings, skid plates, Premium gas-charged shocks, 16″ 5-spoke cast-aluminum wheels, AM/FM stereo/single-CD player with clock, Leather-wrapped tilt steering wheel with speed control, Power Equipment Group, and Limited slip rear axle.
2002 Ford Ranger Tremor
Available models are 4X2 SuperCab 2-door, 4X2 SuperCab 4-door, and 4X4 SuperCab 4-door. It can tow a maximum of between 3,780 to 5,880 pounds when equipped properly.
The 2002 Ford Ranger Tremor trim highlighted features are 16″ 5-spoke machined-aluminum wheels, AM/FM Audiophile Sound System powered by Pioneer includes CD/cassette dual media with clock, enclosed high-output amplifier with 10″ sub-woofer, four 6″ x 8″ two way speakers, higher output alternator, 485 peak watts of maximum power and Power equipment group.
2002 Ford Ranger Payload Capacity
The 2002 Ford Ranger’s payload capacity is between 1,540 to 1,640 pounds when properly equipped. The maximum payload for your vehicle appears on the Tire and Loading label. The label is either on the B-pillar or the edge of the driver’s door.
The payload listed on the Tire and Loading Information label is the maximum payload for your vehicle as built by the assembly plant. If you install any additional equipment on your vehicle, you must determine the new payload. Subtract the weight of the equipment from the payload listed on the Tire and Loading label.
Note: Maximum capabilities shown are for properly equipped vehicles with the required equipment. The weight of additional options, equipment, passengers, and cargo must be deducted from this weight. The suitable loading capacity of your vehicle can be limited either by volume capacity or by payload capacity. Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space handy.
2002 Ford Ranger Trailer Tow Package
If you plan on doing a lot of towing along you’ll need the right accessories there are a number of towing accessories that are available. The 2002 Ford Ranger Trailer Tow Package comes with:
- 4-pin Trailer Wiring Harness (standard).
- Trailer tow-Class III hitch receiver.
- Tow hooks
Note: Always use the proper equipment for towing a trailer and make sure it is properly attached to your vehicle. Contact your authorized dealer or a reliable trailer dealer as soon as possible if you require assistance.
- Hitches
For towing trailers up to 2,000 lbs, use a weight-carrying hitch and ball which uniformly distributes the trailer tongue loads through the underbody structure. Do not install a single or multi-clamp type bumper hitch, or a hitch that attaches to the axle. Whenever a trailer hitch and hardware are removed, make sure all mounting holes in the underbody are properly sealed to prevent harmful gases or water from entering. - Safety chains
Always connect the trailer’s safety chains to the frame or hook retainers of the vehicle hitch. To connect the trailer’s safety chains, cross the chains under the trailer tongue and allow slack for turning corners. Also, remember not to attach safety chains to the bumper. - Trailer brakes
Electric brakes and manual, automatic, or surge-type trailer brakes are safe if installed properly. The trailer brakes must meet local and Federal regulations. Do not connect a trailer’s hydraulic brake system directly to your vehicle’s brake system. Your vehicle may not have enough braking power and your chances of having a collision greatly increase. - Trailer lamps
Trailer lamps are required on most towed vehicles. Make sure all running lights, brake lights, turn signals, and hazard lights are working. Contact your authorized dealer or trailer rental agency for proper instructions and equipment for hooking up trailer lamps. - Trailer tow connector
The trailer tow connector is located under the rear bumper, on the driver’s side of the vehicle.
Also Read: 2005 Ford Ranger towing capacity. 2004 Ford Ranger towing capacity. 2003 Ford Ranger towing capacity.
2002 Ford Ranger Trailer Towing Guide
- Practice turning, stopping, and backing up before starting on a trip to get the feel of the vehicle-trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles.
- Towing trailers beyond the maximum recommended GVWR or the GAWR specified could result in engine damage, transmission damage, structural damage, loss of vehicle control, and vehicle rollover.
- Do not exceed the lowest rating capacity for your vehicle or trailer hitch. Overloading your vehicle or trailer hitch can impair your vehicle’s stability, loss of control, and handling.
- Make sure that the vertical load on the tow ball is between the minimum and maximum recommended weight at all times.
- Do not tow a trailer fitted with electric trailer brakes unless your vehicle is fitted with a compatible aftermarket electronic trailer brake controller.
- Place loads as low as possible and central to the axle of your trailer for the best stability of the trailer in an unloaded vehicle.
