2023 Chevy Colorado towing capacity

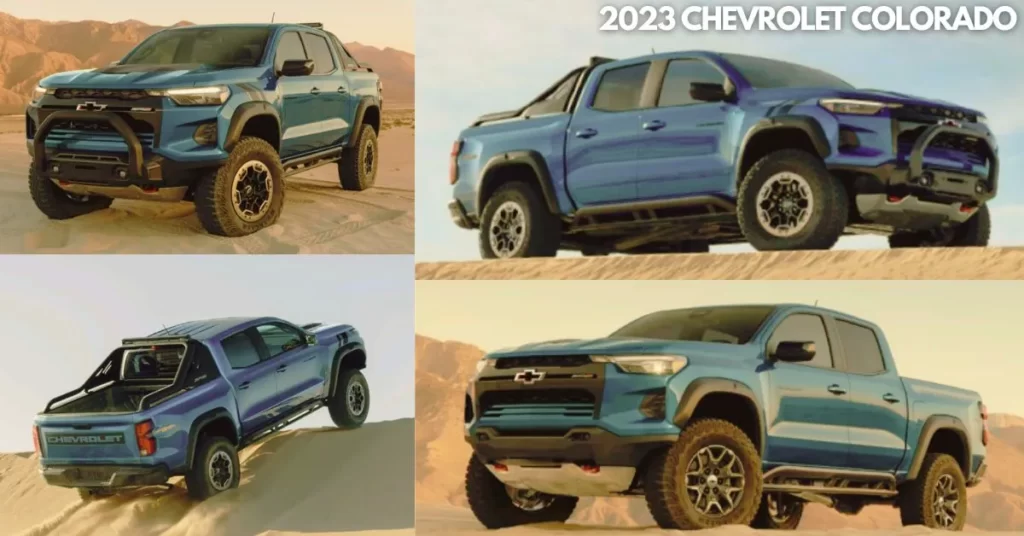

The 2023 Chevrolet Colorado is a third-generation mid-size pickup truck with revised exterior styling, a completely overhauled interior, and a new powertrain. The 2023 Colorado with new performance features and impressive towing capabilities has several unique options also engineered several trims ideal for work, daily driving, and off-roading fun. With responsive driving dynamics and the efficiency, you desire for longer drives.

The towing capacity of the 2023 Chevrolet Colorado varies depending on the model and engine configuration. The pickup is capable of towing up to 7,700 pounds and requires the optional Trailering Package and Limited-Slip Differential.

2023 Chevy Colorado towing capacity chart

2023 Chevy Colorado trim levels2023 Chevy Colorado towing capacity
Chevy Colorado WT3,500 – 7,700 lbs.
Chevy Colorado LT3,500 – 7,700 lbs.
Chevy Colorado Trail Boss7,700 lbs.
Chevy Colorado Z717,700 lbs.
Chevy Colorado ZR26,000 lbs.
The above-shown numbers are subject to change and are for reference purposes only. Do not exceed the trailer weight for your vehicle configuration listed in the chart above. Maximum weights shown are for properly equipped vehicles with the required equipment and a driver. The weight of additional options, equipment, passengers, and cargo must be deducted from this weight.

2023 Chevy Colorado Engine options

The 2.7L Turbo engine is standard in the WT (Work Truck) and LT trims. The base engine can tow 3,500 thanks to 259 lb-ft of torque, standard rear-wheel drive, and 237 horsepower. The mid-level engine is the 2.7L Turbo Plus is built for towing and daily driving with 310 horsepower and 390 lb-ft of torque. This engine tows 7,700 pounds and is standard on the Z71 and Trail Boss trims. The High-output engine is designed for off-roading, and the 2.7L Turbo High-output engine is in the ZR2 trim. This engine has 310 horsepower and 430 lb-ft of torque. Despite the higher torque, the High-Output engine maxes out with 7,700 pounds of towing capacity.

The 2023 Chevrolet Colorado features three updated powertrain options. The turbocharged 2.7-liter four-cylinder engine tuned for different performance features is standard in all Colorado trims.

Engine2.7L Turbo 2.7L Turbo Plus 2.7L Turbo High-Output
Horsepower237 hp310 hp310 hp
Torque259 lb-ft 390 lb-ft430 lb-ft

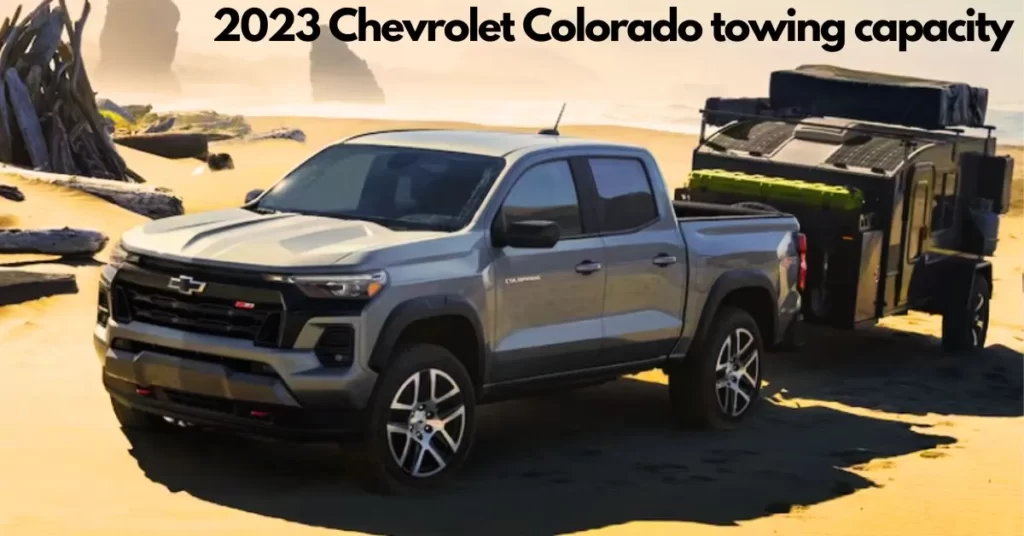

2023 Chevy Colorado towing capacity

The standard tow rating for the Chevy Colorado is 3,500 pounds. For trailers over 3,500 pounds, the available Trailering Package must be equipped properly to maximize up to 7,700 pounds of tow capacity. The towing capacity is determined by several factors, the vehicle’s engine, transmission, brakes, and suspension. It is important to note that exceeding the towing capacity can be dangerous and can cause damage to both the tow vehicle and the trailer.

2023 Chevy Colorado towing capacity without trailering package

The 2023 Chevy Colorado Conventional tow rating across all the models and drivetrain lineup is 3,500 lbs. Check out the table below for more details on conventional tow ratings across the lineup.

Engine Axle Ratio GCWR (lbs.)Maximum Trailer Weight (lbs.)
2.7L I4 Turbo3.428,7003,500
2.7L I4 Turbo Plus3.429,1003,500

2023 Chevy Colorado towing capacity with the trailering package

The Chevrolet Colorado needs to be equipped with the Heavy Duty Trailering Package for a maximum towing capacity of 7,700 pounds. This package includes a trailer hitch and a 7-pin connector; includes an integrated trailer brake controller. Check out the table below to see how the lineup performs in max towing when equipped with the available trailer towing Package.

TrimDrive Type Axle Ratio GCWR (lbs.)Maximum Trailer Weight (lbs.)
Trail Boss4×43.4213,2507,700

2023 Chevy Colorado Dimensions

DimensionsCrew Cab Short Box
A – Front track62.8″ – WT & LT
66.1″ – Trail Boss
62.6″ – Z71
66.3″ – ZR2
B – Width74.9″ – WT & LT
76.3″ – Trail Boss
74.9″ – Z71
76.3″ – ZR2
C – Height78.8″ – WT & LT
79.9″ – Trail Boss
79.6″ – Z71
81.8″ – ZR2
D – Wheelbase131.4″ – all models
E – Length213.0″ – WT & LT
213.2″ – Trail Boss
213.0″ – Z71
212.7″ – ZR2

2023 Chevy Colorado trims

The 2023 Chevrolet Colorado comes in several trim levels with different exterior and interior engineering features. The WT, LT, and Z71 trims have a standard chassis built for comfortable driving on pavement. The Trail Boss trim comes with a two-inch lift and ultra-wide stance for off-roading on trails. Chevy outfits the Colorado ZR2 with a three-inch factory lift and a wide stance for rock crawling and desert driving. All trim levels, regardless of drivetrain configuration, will use a 3.42-axle ratio.

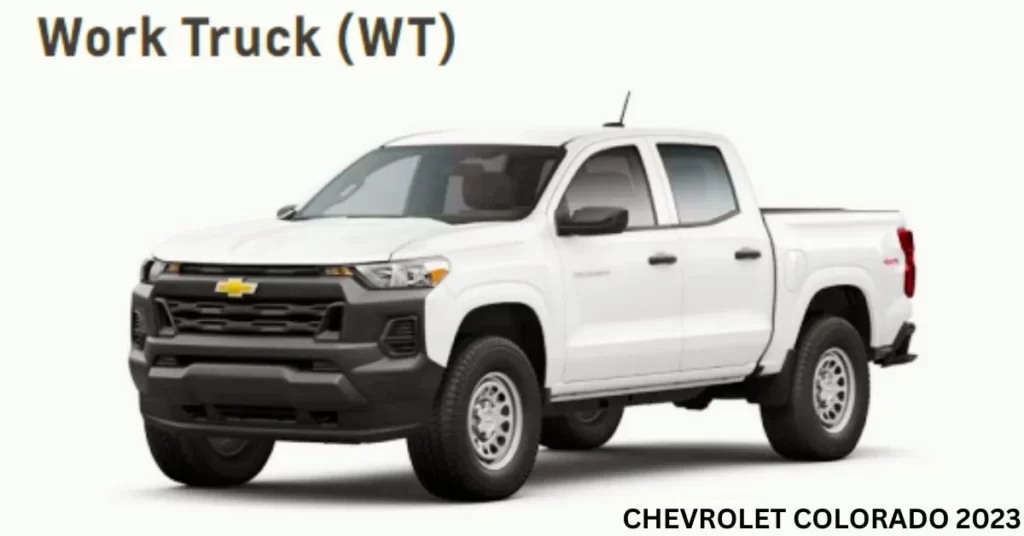

2023 Chevy Colorado WT towing capacity

The highlighted features are Eight fixed pickup bed tie-downs, CornerStep rear bumper, 17-inch Ultra Silver Metallic steel wheels, Jet Black interior, Durable interior materials, 11.3-inch diagonal center touch-screen with Google built-in, Remote Keyless Entry with Push-Button Start, Chevy Safety Assist, 8-inch diagonal digital Driver Information Center, Wireless Apple CarPlay and wireless Android Auto compatibility. The Chevrolet Colorado WT has a towing capacity ranging from 3,500 to 7,700 pounds depending on engine configuration.

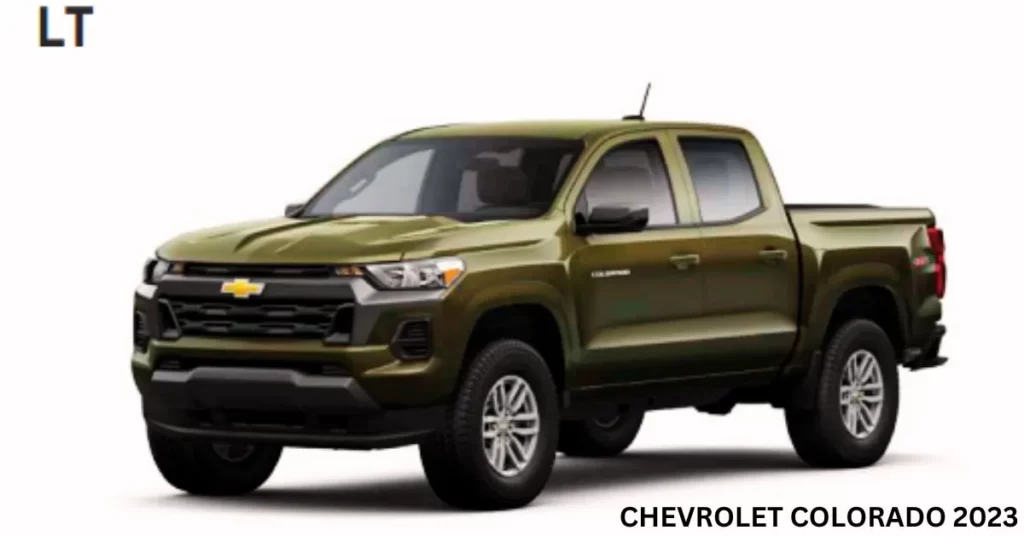

2023 Chevy Colorado LT towing capacity

The highlighted features are 17-inch Argent Metallic aluminum wheels with all-season tires, Body-color front fascia, door handles & rear bumper, Keyless Open & Start, Remote locking tailgate, Jet Black interior with Bright Silver accents, Premium wrapped steering wheel, Center Console, Power windows with driver express-up/-down, Rear air vents, Carpeted front, and rear floor mats. The Chevrolet Colorado LT has a towing capacity ranging from 3,500 to 7,700 pounds depending on engine configuration.

2023 Chevy Colorado Trail Boss towing capacity

The highlighted features are a 2-inch factory-installed lift and wider chassis, 2-speed Autotrac transfer case & transfer case shield, Automatic locking rear differential, Four selectable drive modes (Off-Road, Terrain, Tow/Haul & Normal), Hill Descent Control, 18-inch high-gloss Black aluminum wheels with all-terrain tires, Full-size spare tire & wheel, Black Chevrolet bowtie emblems, Black wheel moldings, Black recovery hooks, Off-road performance display. The Chevrolet Colorado Trail Boss has a towing capacity of up to 7,700 pounds depending on engine configuration.

2023 Chevy Colorado Z71 towing capacity

The highlighted features are 18-inch Android dark full-gloss aluminum wheels with all-terrain tires, Outside heated power-adjustable mirrors, LED headlamps, taillamps & fog lamps, Red recovery hooks, Jet Black interior with Adrenaline Red accents, 120-volt power outlets on the rear of the center console & in the pickup bed (up to 400 watts shared), Sliding front visors with illuminated vanity mirrors, Sliding rear window with electric defogger, Two rear charge-only USB ports, and Cruise control. The Chevrolet Colorado Z71 has a towing capacity of up to 7,700 pounds.

2023 Chevy Colorado ZR2 towing capacity

The highlighted features are 3-inch factory-installed lift with high-performance suspension and ultra-wide stance, Segment-exclusive 3 Multimatic DSSV™ dampers, Electronic locking front & rear differentials, Five selectable drive modes, Rocker panel protector & aluminum performance skid plate, Off-road front fascia & rear bumper, 17-inch Graphite and Oxide Gold aluminum wheels with 33-inch MT tires, StowFlex Tailgate, Trailering Package with Trailering App, Flowtie badge & Black hood appliqué, Artemis interior with Strike Yellow accents, Heated front seats, and 11-inch diagonal digital Driver Information Center. The Chevrolet Colorado ZR2 has a towing capacity of up to 6,000 pounds.

Maximum trailering ratings are intended for comparison purposes only. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The trailering capacity of your specific vehicle may vary. The weight of passengers, cargo and options or accessories may reduce the amount you can trailer. Safety or driver assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. Also, read the vehicle Owner’s Manual for important feature limitations and information.

2023 Chevy Colorado Towing Package & Features

In order to safely take advantage of the Chevy Colorado towing capacity, you’ll need the assistance of the Chevy trailering package. The pickup truck requires Colorado with an available 2.7L Turbo Plus engine and Advanced Trailering Package for maximum towing capacity. Available Advanced Chevy trailering package includes trailer safety and assistance features.

  • Trailering Package with a heavy-duty trailer hitch
  • 7-pin connector
  • Integrated trailer brake controller
  • Auto-locking rear differential included on WT and LT
  • Trailering App

Available Trailering App offers (may require additional optional equipment)

App functionality varies with vehicle equipment available on select Apple and Android devices. A device data connection may be required, some features require an active service plan and a working electrical system. App functionality and features vary with vehicle equipment and trim level. Some features require connected vehicle services trial or active plan and working electrical system.

  • Trailer light sequencing
  • Trailer maintenance reminders
  • Trailer security alerts
  • Trailer mileage
  • Tow/Haul reminder
  • Trailer electrical diagnostics
Explore more:
2023 Chevy Silverado 1500 towing capacity.

2023 Chevy Colorado Payload Capacity

Cargo and load capacity are limited by weight and distribution. These maximum payload ratings shown below are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the Vehicle Loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver door jamb.

Engine TypeTrim2WD (lbs.)4X4 (lbs.)
2.7L TurboWT1,5001,490
2.7L Turbo PlusWT1,7101,710
2.7L TurboLT1,4601,450
2.7L Turbo PlusLT1,6801,670
2.7L Turbo PlusTrail Boss1,580
2.7L Turbo PlusZ711,580
2.7L Turbo High-OutputZR21,280


Overall, the towing capacity of the 2023 Chevy Colorado is an essential aspect to consider when purchasing a pickup truck which is an excellent option for families and meets all of your towing demands. Colorado has a robust towing capacity and a powerful reliable towing vehicle that can manage heavy loads. With the right preparation and knowledge, towing with a mid-size pickup can be a safe and efficient experience. Whether you’re hauling equipment for work going on a camping trip with a big trailer or need to move a boat truck that can handle any load.
