The Ford F-Series of trucks are renowned for their durability, power, and versatility. The 2005 Ford F150 is regarded as one of the best F-Series pickups in its class. Its towing capacity is rated at a best-in-class 9,900 lbs – enough to tackle any job or adventure you bring it!
If you own a 2005 F150 or planning to buy it soon, you can read this detailed guide where we will discover the 2005 Ford F150 Towing Capacity with towing features including standard trailer sway control, available towing technology, and more.

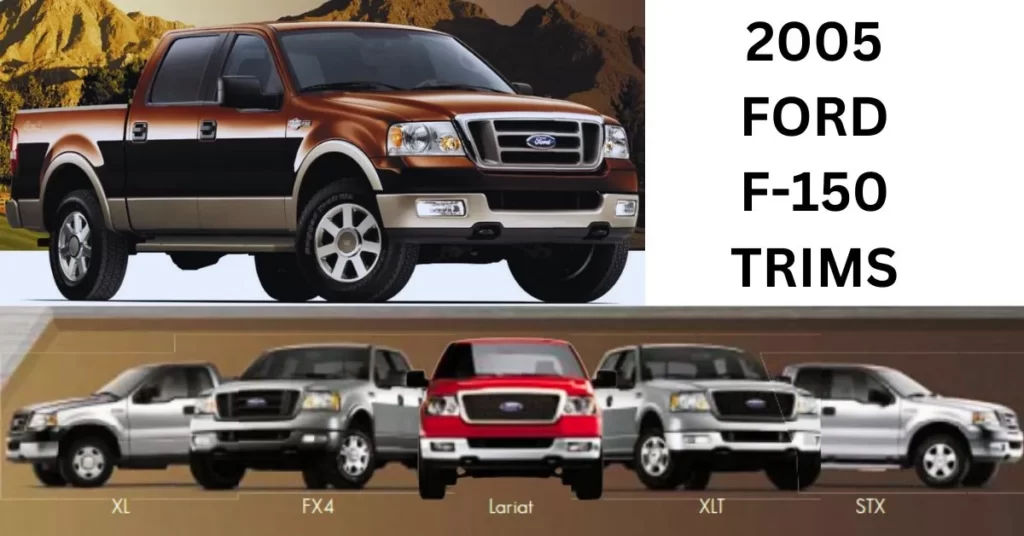

| 2005 Ford F150 model trims | 2005 Ford F150 towing capacity |
| Ford F-150 XL | 2,200 – 9,900 lbs. |
| Ford F-150 STX | 2,200 – 7,100 lbs. |
| Ford F-150 XLT | 2,200 – 9,900 lbs. |
| Ford F-150 FX4 | 6,900 – 9,900 lbs. |
| Ford F-150 Lariat | 6,900 – 9,900 lbs. |
The 2005 Ford F150 can tow anywhere from 5,000 to 9,900 pounds if it has an automatic transmission. However, if it's a manual transmission, the towing capacity is much lower, ranging from 2,200 to 3,700 pounds. No matter whether you're using a hitch receiver or the bumper for towing, it's crucial not to go beyond a 500-pound tongue weight or a trailer weight of 5,000 pounds unless you have a weight-distributing trailer hitch.
Table of Contents
The 2005 Ford F-150 was known for its outstanding towing capacity. With the strongest frame in the class and innovative suspension engineering, this rugged pickup truck can easily handle heavy loads.
Furthermore, it is equipped with cab-insulating body mounts that help protect the interior when hauling or towing. The Ford F-150 delivers exceptional performance and can tow up to 9,900 lbs (4,497 kilos) maximum.
Note: Your owner's manual holds a wealth of crucial information that will greatly benefit you in your journey with your truck. I highly recommend dedicating some time to perusing it attentively. By doing so, you'll become well-acquainted with your vehicle's functionalities. Furthermore, it's of utmost importance to adhere to all the recommendations and requirements outlined by Ford within the manual. These guidelines are there to ensure your safety, prolong the life of your truck, and optimize its performance. So, make it a habit to reference your owner's manual whenever you have questions or need to understand your truck better it's like your personal roadmap to a smooth and trouble-free ownership experience.
Other key features of the 2005 Ford F150
- 4-door Regular Cab pickup.
- The pickup is to feature 4 doors in each of the 3 cabs (Regular, SuperCab, and SuperCrew) for ease of access.
- The full-size pickup employs 3-valve engine technology (5.4L TritonTM V8), to optimize horsepower and low-end torque.
- The first wheel-torque-based Electronic Throttle Control in a full-size pickup to help deliver smooth, consistent engine response.
- The only outboard-mounted rear shock absorbers in a full-size pickup for excellent performance on- and off-road.
- The pickup with cast-aluminum lower control arms on a double-wishbone, coil-over-shock front suspension.
- With Tailgate Assist to make opening and closing easier.
- The Ford Personal Safety System, including occupant classification sensing.
- The overhead modular rail system is available in a pickup, allowing customized interior storage options.
- With 2nd-row power windows in a SuperCab.
2005 Ford F150 Engine Options
The 2005 Ford F150 offers a variety of engine options for power and performance. Drivers can choose from the efficient 4.2L V6, the powerful 4.6L TritonTM V8, or the innovative 5.4L 3-valve Triton V8 with its exceptional low-end torque.
Thanks to total system management, with features like standard Electronic Throttle Control and carefully selected transmission-pairing and axle-ratio choices, this powerhouse delivers on its promise every time.
| ENGINE | MAXIMUM POWER | MAXIMUM TORQUE |
| 4.2L V6 | 202 hp | 260 lb.-ft. |
| 4.6L Triton V8 | 231 hp | 293 lb.-ft. |
| 5.4L Triton V8 | 300 hp | 365 lb.-ft. |
2005 Ford F150 Towing Capacity Chart based on Engine Types
| ENGINE | MAXIMUM TOWING CAPACITY |
| 4.2L V6 | 5,600 lbs |
| 4.6L Triton V8 | 7,100 lbs |
| 5.4L Triton V8 | 9,900 lbs |
Back in 2005, Ford had two separate charts for the F-150 trucks. They did this because the ratings for towing varied depending on the type of hitch you were using. The first chart was for regular hitches, the kind most owners use. The second chart specifically dealt with fifth-wheel hitches, and the towing capacities were a bit different for each hitch style.
To figure out how much weight your truck can safely tow, you’ll need to take several factors into account and then plug them into the appropriate chart. These factors include the type of engine in your truck, whether it has an automatic or manual transmission, the style of the cab on your truck, and a few other details we’ll discuss in this article.

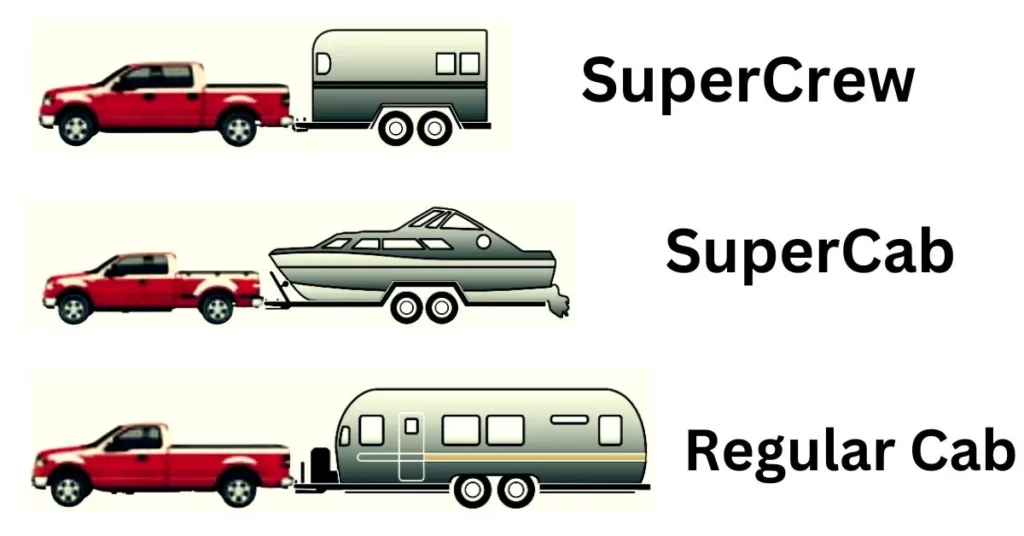

2005 Ford F150 Conventional Towing Capacity
Ford provided a wide array of options for their F150 Pickup trucks, ensuring they catered to a diverse range of preferences and needs. Buyers had the freedom to choose from the Regular Cab, Super Cab, and Supercrew configurations, all available with either 4×2 or 4×4 drive capabilities. This gave people the flexibility to select a truck that perfectly matched their unique requirements, whether it was for personal use, work, or family transportation.
However, when it came to towing capacity, there was no one-size-fits-all solution. The 2005 F150’s towing abilities varied significantly, and several crucial factors came into play. Firstly, the type of vehicle configuration you went for played a pivotal role. The weight and size of the cab and bed had a direct impact on how much weight the truck could safely tow.
The type of engine was another critical factor. Different engine options came with varying power and torque outputs, which had a direct effect on the F150’s towing capacity. Furthermore, the selection of the axle ratio and wheelbase length also played a role in determining the truck’s towing capabilities. A truck with a longer wheelbase and a specific axle ratio might be better suited for towing heavier loads compared to one with different specifications.
Regular Cab 4×2 chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.2L SEFI V6 | 3.55 | 10,000 | 126.0″ | 5,100 |
| 10,000 | 144.5″ | 5,000 | ||
| 3.73 | 10,500 | 126.0″ | 5,600 | |
| 10,500 | 144.5″ | 5,500 | ||
| 4.6L SEFI V8 | 3.55 | 11,500 | 126.0″ | 6,500 |
| 11,700 | 144.5″ | 6,600 | ||
| 3.73 | 12,000 | 126.0″ | 7,000 | |
| 12,200 | 144.5″ | 7,100 | ||
| 5.4L SEFI V8 | 3.31 | 12,000 | 126.0″ | 6,900 |
| 12,500 | 144.5″ | 7,300 | ||
| 3.55 | 13,000 | 126.0″ | 7,900 | |
| 14,000 | 144.5″ | 8,800 | ||
| 3.73 | 13,500 | 126.0″ | 8,400 | |
| 15,000 | 144.5″ | 9,800 | ||
| 4.10 | 15,300 | 144.5″ | 9,900 | |
| Maximum Loaded Trailer Weight (Lbs.) – Manual Transmission | ||||
| 4.2L SEFI V6 | 3.31 | 7,200 | 126.0″ | 2,400 |
| 7,200 | 144.5″ | 2,200 | ||
| 3.55 | 8,500 | 126.0″ | 3,700 | |
| 8,500 | 144.5″ | 3,500 | ||
Regular Cab 4×4 Chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.6L SEFI V8 | 3.55 | 11,500 | 126.0″ | 6,200 |
| 11,700 | 144.5″ | 6,300 | ||
| 3.73 | 12,000 | 126.0″ | 6,700 | |
| 12,200 | 144.5″ | 6,800 | ||
| 5.4L SEFI V8 | 3.55 | 13,000 | 126.0″ | 7,600 |
| 14,000 | 144.5″ | 8,500 | ||
| 3.73 | 13,500 | 126.0″ | 8,100 | |
| 15,000 | 144.5″ | 9,500 | ||
| 4.10 | 15,300 | 144.5″ | 9,500 | |
SuperCab 4×2 Chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.6L SEFI V8 | 3.55 | 11,500 | 132.5″ | 6,300 |
| 11,700 | 144.5″ | 6,400 | ||
| 3.73 | 12,000 | 132.5″ | 6,800 | |
| 12,200 | 144.5″ | 6,900 | ||
| 5.4L SEFI V8 | 3.55 | 13,000 | 132.5″ | 7,600 |
| 14,000 | 144.5″ | 8,600 | ||
| 3.73 | 13,500 | 132.5″ | 8,100 | |
| 15,000 | 144.5″ | 9,500 | ||
| 4.10 | 15,300 | 163.0″ | 9,500 | |
SuperCab 4×4 Chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.6L SEFI V8 | 3.55 | 11,500 | 132.5″ | 6,000 |
| 11,700 | 144.5″ | 6,100 | ||
| 3.73 | 12,000 | 132.5″ | 6,500 | |
| 12,200 | 144.5″ | 6,600 | ||
| 5.4L SEFI V8 | 3.55 | 13,000 | 132.5″ | 7,300 |
| 14,000 | 144.5″ | 8,300 | ||
| 3.73 | 13,500 | 132.5″ | 7,800 | |
| 15,000 | 144.5″ | 9,300 | ||
| 4.10 | 15,300 | 163.0″ | 9,300 | |
SuperCrew 4×2 Chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.6L SEFI V8 | 3.55 | 11,700 | 138.5″ | 6,300 |
| 3.73 | 12,200 | 138.5″ | 6,800 | |
| 5.4L SEFI V8 | 3.55 | 14,000 | 138.5″ | 8,500 |
| 3.73 | 15,000 | 138.5″ | 9,500 | |
SuperCrew 4×4 Chart
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | ||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Max. Towing Capacity (Lbs.) |
| 4.6L SEFI V8 | 3.73 | 12,200 | 138.5″ | 6,500 |
| 5.4L SEFI V8 | 3.55 | 14,000 | 138.5″ | 8,200 |
| 3.73 | 15,000 | 138.5″ | 9,200 | |
2005 Ford F150 Fifth-wheel Towing Capacity
While the F-150 SuperCrew has the capability to tow up to 8,000 lbs. and the box will accept a fifth-wheel hitch, current fifth-wheel trailer designs are not compatible with SuperCrew.
Regular Cab
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | |||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Drive Type | |
| 4×2 | 4×4 | ||||
| 4.2L SEFI V6 | 3.55 | 10,000 | 126.0″ | 5,100 | – |
| 144.5″ | 5,000 | – | |||
| 3.73 | 10,500 | 126.0″ | 5,600 | – | |
| 144.5″ | 5,500 | – | |||
| 4.6L SEFI V8 | 3.55 | 11,500 | 126.0″ | 6,500 | 6,200 |
| 11,700 | 144.5″ | 6,600 | 6,300 | ||
| 3.73 | 12,000 | 126.0″ | 7,000 | 6,700 | |
| 12,200 | 144.5″ | 7,100 | 6,800 | ||
| 5.4L SEFI V8 | 3.31 | 12,000 | 126.0″ | 6,900 | – |
| 12,500 | 144.5″ | 7,300 | – | ||
| 3.55 | 13,000 | 126.0″ | 7,900 | 7,600 | |
| 14,000 | 144.5″ | 8,800 | 8,500 | ||
| 3.73 | 13,500 | 126.0″ | 8,400 | 8,100 | |
| 15,000 | 144.5″ | 9,800 | 9,500 | ||
| 4.10 | 15,300 | 144.5″ | 9,900 | 9,500 | |
SuperCab
| Maximum Loaded Trailer Weight (Lbs.) – Automatic Transmission | |||||
| Engine | Axle Ratio | GCWR (Lbs.) | Wheelbase | Drive Type | |
| 4×2 | 4×4 | ||||
| 4.6L SEFI V8 | 3.55 | 11,700 | 144.5″ | 6,400 | 6,100 |
| 3.73 | 12,200 | 144.5″ | 6,900 | 6,600 | |
| 5.4L SEFI V8 | 3.55 | 14,000 | 144.5″ | 8,600 | 8,300 |
| 3.73 | 15,000 | 144.5″ | 9,500 | 9,300 | |
| 4.10 | 15,300 | 163.0″ | 9,500 | 9,300 | |

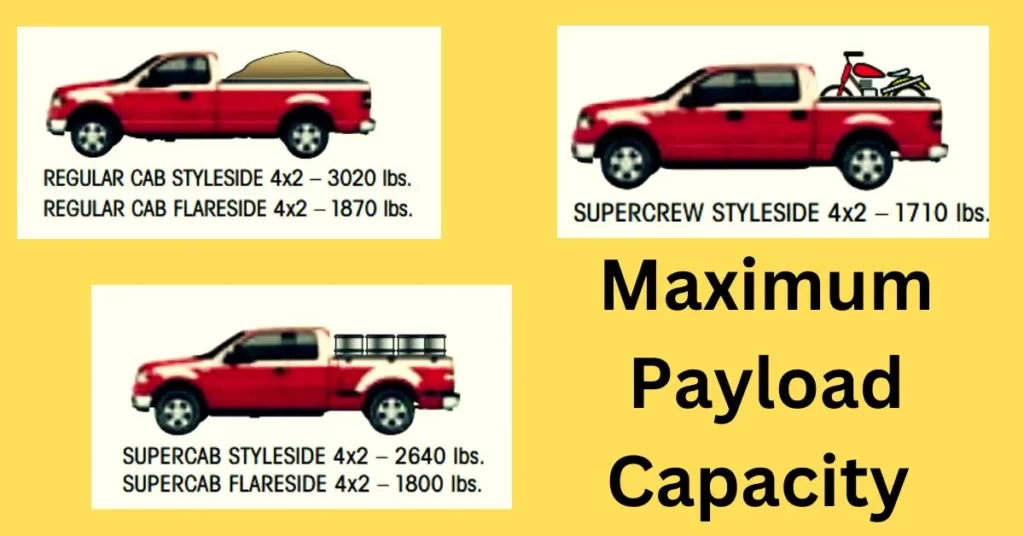

2005 Ford F150 Payload Capacity
Payload is the combined weight of passengers and cargo that a truck is engineered to handle. To figure out the payload, you subtract the Base Curb Weight from the Gross Vehicle Weight Rating (GVWR). Here’s a chart that provides GVWRs and Maximum Cargo Weights (assuming minimum equipment) based on the engine for the 2005 Ford F150.
Regular cab Styleside
| Drive Type | Wheelbase (in.) | Engine | GVWR (Lbs.) | Max. Payload (Lbs.) |
4×2 | 126 | 4.2L | 6,500 | 1,830 |
| 4.6L | 6,650 | 1,890 | ||
| 5.4L | 6,650 | 1,790 | ||
| 144.5 | 4.2L | 6,650 | 1,850 | |
| 4.6L | 6,800 | 1,910 | ||
| 5.4L | 7,050 | 2,050 | ||
| 5.4L | 8,200 | 3,020 | ||
| 4×4 | 126 | 4.6L | 6,800 | 1,740 |
| 5.4L | 6,850 | 1,680 | ||
| 144.5 | 4.6L | 6,950 | 1,760 | |
| 5.4L | 6,950 | 1,650 | ||
| 5.4L | 8,200 | 2,670 |
SuperCab Styleside
| Drive Type | Wheelbase (in.) | Engine | GVWR (Lbs.) | Max. Payload (Lbs.) |
| 4×2 | 133 | 4.6L | 6,650 | 1,620 |
| 5.4L | 6,950 | 1,740 | ||
| 144.5 | 4.6L | 6,700 | 1,580 | |
| 5.4L | 7,050 | 1,820 | ||
| 163 | 5.4L | 8,200 | 2,640 | |
| 4×4 | 133 | 4.6L | 6,900 | 1,570 |
| 5.4L | 7,150 | 1,640 | ||
| 144.5 | 4.6L | 6,950 | 1,530 | |
| 5.4L | 7,200 | 1,670 | ||
| 163 | 5.4L | 8,200 | 2,290 |
SuperCrew Styleside
| Drive Type | Wheelbase (in.) | Engine | GVWR (Lbs.) | Max. Payload (Lbs.) |
| 4×2 | 139 | 4.6L | 6,800 | 1,570 |
| 5.4L | 7,050 | 1,710 | ||
| 4×4 | 139 | 4.6L | 6,900 | 1,360 |
| 5.4L | 7,200 | 1,560 |
Regular Cab Flareside
| Drive Type | Wheelbase (in.) | Engine | GVWR (Lbs.) | Max. Payload (Lbs.) |
| 4×2 | 126 | 4.2L | 6,500 | 1,810 |
| 4.6L | 6,650 | 1,870 | ||
| 5.4L | 6,650 | 1,770 | ||
| 4×4 | 126 | 4.6L | 6,800 | 1,720 |
| 5.4L | 6,850 | 1,660 |
SuperCab Flareside
| Drive Type | Wheelbase (in.) | Engine | GVWR (Lbs.) | Max. Payload (Lbs.) |
| 4×2 | 144.5 | 4.6L | 6,700 | 1,560 |
| 5.4L | 7,050 | 1,800 | ||
| 4×4 | 144.5 | 4.6L | 6,950 | 1,510 |
| 5.4L | 7,200 | 1,650 |
2005 Ford F150 Trailer Towing Package
Identifying available packages for these older F150 models can be a bit challenging. However, all standard 2005 F150s are equipped with 4-pin trailer wiring harnesses. It’s important to note that they don’t include any trailer hitch receiver as part of their standard features. If you want a hitch receiver, you’ll need to opt for the Trailer Tow Group or Trailer Tow Package; it’s not included by default.
This package also comes with:
- 7-wire harness & 4/7 pin connector
- hitch receiver
- radiator upgrade
- 72 amp hr heavy-duty battery
- aux auto trans oil cooler
Heavy-Duty Payload Package
This package is only available in a 5.4L engine increases the vehicle GVWR to 8,200 pounds and comes with:
- Upgraded springs
- Super engine cooling
- 72 Amp-hr batter
- 9-channel oil-to-water auxiliary transmission oil cooler
Though 5th-wheel towing is compatible with the F150, there is no package that offers a factory hitch so it must be installed separately.
Explore the rich heritage of the Ford F-150 and witness its evolution throughout the years. Please check out the Ford F150 towing capacity by year article where we have covered all the F-150 model’s tow ratings by each specific year.
Rear Step Bumper VS. Hitch Receiver Towing
Towing always involves using some kind of hitch, but the Ford F150 offers the option of bumper towing.
Bumper towing means you can attach a ball hitch to the vehicle’s bumper without needing a fully installed hitch receiver. However, when it comes to regular towing without a weight-distributing trailer hitch, the maximum towing capacity should not exceed 5,000 lbs, and the tongue weight on the ball should stay under 500 lbs.
This translates to a 10% tongue weight for all trailers.
To tow anything over 5,000 lbs, you’ll need a weight-distributing trailer hitch with a properly installed hitch receiver.
| Ford Rear Step Bumper/Hitch Receiver Weight Capacity | Max. Tongue Weight (lbs.) | |
| Weight-Carrying Capacity (lbs.) | 5,000 | 500 |
| Weight-Distributing Capacity (lbs.) | 9,900 | 990 |
Frontal Area Considerations
Frontal area is the total surface area, measured in square feet, that a moving vehicle and its trailer expose to air resistance. The chart offers important advice for selecting the right vehicle and trailer combo. Going over these limits can significantly reduce your towing vehicle’s performance.
| F150 | Base Vehicle Frontal Area | Without Trailer Tow Pkg. or Heavy Duty Payload Pkg. |
| 60 sq. ft. | With Trailer Tow Pkg. or Heavy Duty Payload Pkg. |
Conclusion on 2005 Ford F150 Towing Capacity
We explored the 2005 Ford F150 Towing Capacity with complete towing charts, guidelines, and essential information.
The 2005 Ford F150 can tow up to 9,900 lbs when equipped with the available maximum trailer tow package and powered by a 5.4L Triton V8 engine. This powerful Triton engine delivers a maximum power of 300 hp, and a peak torque of 365 lb.-ft.
The F150 also includes an upgraded rear bumper to support its Built Ford Tough credentials for towing and hauling. There are towing packages available including traction bars, transmission coolers, brakes, hitches, and more to boost the towing capacity of your Ford F150.
But always give your vehicle a test drive before departing on a long haul so that all settings are adjusted accordingly in order to avoid potential problems while out on the open roads!
Some safety protocols for safe towing
- You should not exceed a trailer weight of 5,000 lbs. when towing only with a bumper.
- The trailer tongue load weight should be 10%-15% of the total loaded trailer weight.
- The combined weight of the vehicle, and trailer must not exceed the GCWR (Gross Combined Weight Rating) mentioned in the owner’s manual.
- F150 owners must carefully read, and review the owner’s manual before using their pickup truck for towing purposes.
- The maximum towing capacity may only be achieved when the 2005 F150 is equipped with a powerful engine, Max Trailer Tow Package, required tires, wheels, and other towing accessories.
- The towing capacity varies according to the vehicle configuration, cargo, number of passengers, availability of towing accessories, and other customizations.
