2021 Ford F150 Towing Capacity Charts

The 2021 Ford F150 Pickup truck offers a maximum towing of up to 14,000 lbs. This impressive towing performance is possible due to the high-strength build, and powerful engine options. The 2021 F-Series Pickup trucks are tested to meet the optimum durability and reliability standards. With a high-strength steel fully boxed ladder frame and a high-strength, military-grade, aluminum alloy body that saves weight, and boosts the towing capability.

2021 Ford F150 trim levels	2021 Ford F150 towing capacity
Ford F-150 XL	8,200 – 14,000 lbs.
Ford F-150 XLT	8,200 – 14,000 lbs.
Ford F-150 Lariat	8,200 – 14,000 lbs.
Ford F-150 King Ranch	8,200 – 14,000 lbs.
Ford F-150 Platinum	8,200 – 14,000 lbs.
Ford F-150 Limited	8,200 – 14,000 lbs.

2021 Ford F150 Towing Capacity by Engine

The 2021 F-150 Pickup truck is available with 6 different engines that are listed below.

• 3.3L Ti-VCT V6: The standard 3.3L Ti-VCT V6 engine produces a maximum power of 290 hp at 6,500 rpm, and a maximum torque of 265 lb-ft at 4,000 rpm. With this powertrain equipped with dual-direct and port fuel injection, the F150 can tow up to 8,200 pounds.
• 2.7L EcoBoost V6: The available 2.7L EcoBoost V6 engine is capable of generating maximum power of 325 hp at 5,000 rpm, and a torque of 400 lb-ft at 3,000 rpm. The F150s powered by this engine can offer a maximum towing capacity of 10,100 pounds.
• 3.5L EcoBoost V6: With a 3.5L EcoBoost V6 engine can tow up to 14,000 pounds which is the highest-rated capacity. This powerful engine can deliver a prime power of 400 hp at 5,000 rpm, and a peak torque of 500 lb-ft at 3,100 rpm.
• 3.5L PowerBoost Full Hybrid: The 3.5L PowerBoost Full Hybrid V6 engine is another powerful engine available for the 2021 F150s. It delivers a maximum power of 430 hp at 5,750 rpm, and a maximum torque of 570 lb-ft at 3,000 rpm. F150s equipped with this engine can tow up to 12,700 pounds.
• 5.0L Ti-VCT V8: Likewise, the available 5.0L Ti-VCT V8 engine offers remarkable efficiency, and delivers a peak power of 400 hp at 6,000 rpm, and a max torque of 410 lb-ft at 4,250 rpm. With this power delivery, the F150 is able to tow up to 13,000 pounds.
• 3.0L Turbo Diesel V6: The 3.0L Turbo Diesel V6 engine is also available for the 2021 Ford F150 which generates a maximum power of 250 hp at 3,250 rpm, and a maximum torque of 440 lb-ft. at 1,750 rpm. The maximum towing capacity of the F-150 with the 3.0L Turbo Diesel V6 engine is 12,100 pounds.

Engine Type	Max Towing Capacity (lbs.)	Max Payload Capacity (lbs.)
3.3L Ti-VCT V6	8,200	1,965
2.7L EcoBoost V6	10,100	2,480
3.5L EcoBoost V6	14,000	3,250
3.5L PowerBoost Full Hybrid V6	12,700	2,120
5.0L Ti-VCT V8	13,000	3,325
3.0L Turbo Diesel V6	12,100	1,840

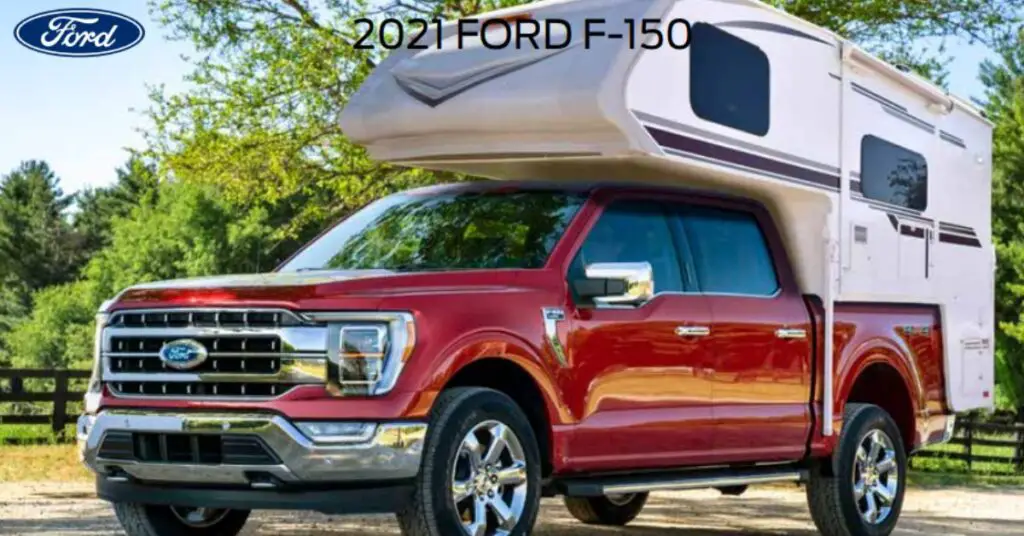

2021 Ford F-150 Maximum Cargo Weight With Slide-In Camper

The following chart lists GVWRs and Maximum Cargo Weights (with minimum equipment) by the engine for each approved pickup model: 3.5L V6 EcoBoost and 5.0L V8. The cargo Weight Rating shown in the chart is the maximum allowable, assuming the weight of a base vehicle with required camper option content and a 150-lb. passenger at each available seating position. Requires Heavy-Duty Payload Package option.

3.5L GTDI V6

Cab Type	Drive Type	Wheelbase	GVWR (lbs.)	Maximum Cargo Weight Rating (lbs.)
Regular Cab	4×2	141.5″	7,850	2,780
SuperCab	4×2	164.1″	7,850	2,064
SuperCrew	4×2	157.2″	7,850	1,963
Regular Cab	4×4	141.5″	7,850	2,566
SuperCab	4×4	164.1″	7,850	1,824
SuperCrew	4×4	157.2″	7,850	1,721

5.0L 4-Valve V8

Cab Type	Drive Type	Wheelbase	GVWR (lbs.)	Maximum Cargo Weight Rating (lbs.)
Regular Cab	4×2	141.5″	7,850	2,856
SuperCab	4×2	164.1″	7,850	2,093
SuperCrew	4×2	157.2″	7,850	1,980
Regular Cab	4×4	141.5″	7,850	2,583
SuperCab	4×4	164.1″	7,850	1,848
SuperCrew	4×4	157.2″	7,850	1,731

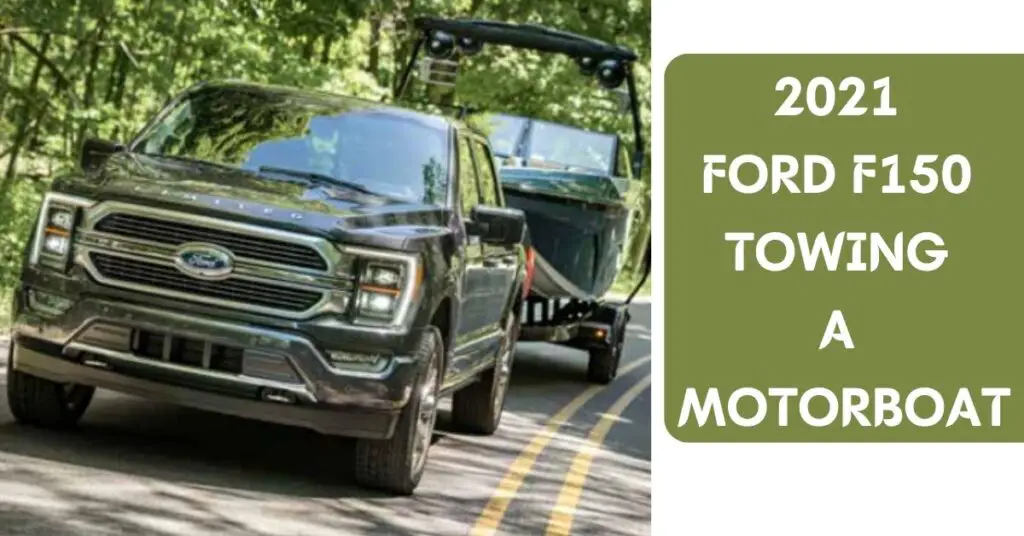

2021 Ford F-150 Regular Cab Conventional Towing

2021 Ford F-150 Regular Cab 4X2 towing capacity

[Regular Cab 4X2 3.3L PFDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	122.8″	9,400	5,000
3.55	141.5″	9,500	5,000
3.73	122.8″	12,600	8,200
3.73	141.5″	12,700	8,200

[Regular Cab 4X2 5.0L 4-Valve V8 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	122.8″	13,000	8,300
3.15	141.5″	14,800	9,900
3.31	122.8″	13,000	8,300
3.31	141.5″	14,800	9,900
3.73	122.8″	13,800	9,100
3.73	141.5″	15,300	10,400
3.73	141.5″	17,900	13,000
3.73	141.5″	18,000	13,000

[Regular Cab 4X2 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	122.8″	12,200	7,600
3.15	141.5″	12,300	7,600
3.55	122.8″	12,200	7,600
3.55	141.5″	12,300	7,600
3.73	122.8″	13,200	8,600
3.73	141.5″	13,300	8,600
3.73	141.5″	14,800	10,000

[Regular Cab 4X2 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	141.5″	16,100	11,200
3.55	141.5″	16,100	11,200
3.55	141.5″	17,900	13,000
3.73	141.5″	18,400	13,300

2021 Ford F-150 Regular Cab 4X4 towing capacity

[Regular Cab 4X4 3.3L PFDI V6 Engine ]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	122.8″	9,700	5,100
3.73	122.8″	12,800	8,200
3.73	141.5″	12,900	8,200

[Regular Cab 4X4 5.0L 4-Valve V8 Engine ]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	122.8″	13,200	8,200
3.31	141.5″	14,800	9,700
3.73	122.8″	14,600	9,600
3.73	141.5″	15,600	10,500
3.73	141.5″	17,900	12,800
3.73	141.5″	18,300	13,000

[Regular Cab 4X4 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	122.8″	12,500	7,700
3.55	141.5″	12,600	7,700
3.73	122.8″	13,300	8,500
3.73	141.5″	13,300	8,400
3.73	141.5″	15,100	10,000

[Regular Cab 4X4 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	141.5″	16,400	11,200
3.55	141.5″	16,400	11,200
3.55	141.5″	17,900	12,700
3.73	141.5″	18,400	13,100

2021 Ford F-150 Super Cab Conventional Towing

2021 Ford F-150 SuperCab 4X2 towing capacity

[SuperCab 4X2 3.3L PFDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	145.4″	9,700	5,000
3.73	145.4″	12,900	8,200

[SuperCab 4X2 5.0L 4-Valve V8 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	145.4″	14,800	9,800
3.15	164.1″	14,800	9,600
3.31	145.4″	14,800	9,800
3.31	164.1″	14,800	9,600
3.73	145.4″	15,500	10,500
3.73	164.1″	15,600	10,400
3.73	145.4″	17,800	12,800
3.73	164.1″	18,200	13,000
3.73	164.1″	18,300	13,000

[SuperCab 4X2 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	145.4″	12,600	7,700
3.15	164.1″	12,600	7,600
3.55	145.4″	12,600	7,700
3.55	164.1″	12,600	7,600
3.73	145.4″	13,300	8,400
3.73	164.1″	13,300	8,300
3.73	145.4″	15,000	10,000
3.73	164.1″	15,100	10,000

[SuperCab 4X2 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,200	11,000
3.31	164.1″	16,500	11,200
3.55	145.4″	16,200	11,000
3.55	164.1″	16,500	11,200
3.55	145.4″	17,500	12,300
3.55	164.1″	19,400	14,000
3.73	164.1″	19,400	14,000

2021 Ford F-150 SuperCab 4X4 towing capacity

[SuperCab 4X4 3.3L PFDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.73	145.4″	13,100	8,100

[SuperCab 4X4 5.0L 4-Valve V8 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	14,800	9,500
3.31	164.1″	14,800	9,400
3.73	145.4″	15,800	10,500
3.73	164.1″	15,800	10,400
3.73	145.4″	17,600	12,300
3.73	164.1″	18,400	13,000
3.73	164.1″	18,500	13,000

[SuperCab 4X4 3.0L Turbo Diesel V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,300	10,500
3.55	145.4″	16,300	10,500
3.55	145.4″	17,900	12,100

[SuperCab 4X4 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	145.4″	12,800	7,600
3.73	145.4″	13,300	8,100
3.73	145.4″	15,300	10,100

[SuperCab 4X4 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,500	11,100
3.31	164.1″	16,800	11,200
3.55	145.4″	16,500	11,100
3.55	164.1″	16,800	11,200
3.55	145.4″	17,700	12,300
3.55	164.1″	19,400	13,800
3.73	164.1″	19,400	13,800

2021 Ford F-150 SuperCrew Conventional Towing

2021 Ford F-150 SuperCrew 4X2 towing capacity

[SuperCrew 4X2 3.3L PFDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	145.4″	9,900	5,100
3.73	145.4″	13,000	8,200

[SuperCrew 4X2 5.0L 4-Valve V8 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	145.4″	14,800	9,700
3.15	157.2″	14,800	9,600
3.31	145.4″	14,800	9,700
3.31	157.2″	14,800	9,600
3.73	157.2″	15,600	10,400
3.73	145.4″	15,600	10,500
3.73	145.4″	18,100	12,900
3.73	157.2″	18,200	13,000
3.73	157.2″	18,400	13,000

[SuperCrew 4X2 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.15	145.4″	12,700	7,700
3.15	157.2″	12,800	7,800
3.55	145.4″	12,700	7,700
3.55	157.2″	12,800	7,800
3.73	145.4″	13,300	8,300
3.73	157.2″	13,300	8,300
3.73	145.4″	15,100	10,000
3.73	157.2″	15,100	10,000

[SuperCrew 4X2 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,500	11,200
3.31	157.2″	16,600	11,300
3.55	145.4″	16,500	11,200
3.55	157.2″	16,600	11,300
3.55	145.4″	19,300	14,000
3.55	157.2″	19,300	14,000
3.73	157.2″	19,400	14,000

[SuperCrew 4X2 3.5L Hybrid V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	145.4″	16,700	11,000
3.55	157.2″	16,800	11,100
3.55	145.4″	18,400	12,700
3.55	157.2″	18,400	12,700

2021 Ford F-150 SuperCrew 4X4 towing capacity

[SuperCrew 4X4 3.3L PFDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.73	145.4″	13,300	8,200

[SuperCrew 4X4 5.0L 4-Valve V8 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	14,800	9,400
3.31	157.2″	14,800	9,300
3.73	145.4″	15,800	10,400
3.73	157.2″	15,800	10,300
3.73	145.4″	18,400	13,000
3.73	157.2″	18,400	12,900
3.73	157.2″	18,600	13,000

[SuperCrew 4X4 3.0L Turbo Diesel V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,300	10,400
3.31	157.2″	16,300	10,400
3.55	145.4″	13,000	10,400
3.55	157.2″	13,400	10,400
3.55	145.4″	18,000	12,100
3.55	157.2″	18,000	12,100

[SuperCrew 4X4 2.7L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.55	145.4″	12,900	7,700
3.73	145.4″	13,300	8,100
3.73	145.4″	15,400	10,100

[SuperCrew 4X4 3.5L GTDI V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.31	145.4″	16,800	11,300
3.31	157.2″	16,800	11,200
3.55	157.2″	16,800	11,200
3.55	145.4″	16,800	11,300
3.55	145.4″	19,400	13,900
3.55	157.2″	19,400	13,800
3.73	157.2″	19,500	13,800

[SuperCrew 4X4 3.5L Hybrid V6 Engine]

Axle Ratio	WB	GCWR (lbs.)	Maximum Loaded Trailer Weight Ratings (lbs.)
3.73	145.4″	17,000	11,000
3.73	157.2″	17,000	11,000
3.73	145.4″	18,400	12,400
3.73	157.2″	18,400	12,400

2021 Ford F-150 Regular Cab 5th Wheel Towing

[Regular Cab 4X2]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	122.8″	9,400	5,000
3.55	141.5″	9,500	5,000
3.73	122.8″	12,600	8,200
3.73	141.5″	12,700	8,200

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	122.8″	13,000	8,300
3.15	141.5″	14,800	9,900
3.31	122.8″	13,000	8,300
3.31	141.5″	14,800	9,900
3.73	122.8″	13,800	9,100
3.73	141.5″	15,300	10,400
3.73	141.5″	17,900	12,800
3.73	141.5″	18,000	13,000

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	122.8″	12,200	7,600
3.15	141.5″	12,300	7,600
3.55	122.8″	12,200	7,600
3.55	141.5″	12,300	7,600
3.73	122.8″	13,200	8,600
3.73	141.5″	13,300	8,600
3.73	141.5″	14,800	10,000

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	141.5″	16,100	11,200
3.55	141.5″	16,100	11,200
3.55	141.5″	17,900	13,000
3.73	141.5″	18,400	13,300

[Regular Cab 4X4]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	122.8″	9,700	5,100
3.73	122.8″	12,800	8,200
3.73	141.5″	12,900	8,200

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	122.8″	13,200	8,200
3.31	141.5″	14,800	9,700
3.73	122.8″	14,600	9,600
3.73	141.5″	15,600	10,500
3.73	141.5″	17,900	12,500
3.73	141.5″	18,300	13,000

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	122.8″	12,500	7,700
3.55	141.5″	12,600	7,700
3.73	122.8″	13,300	8,500
3.73	141.5″	13,300	8,400
3.73	141.5″	15,100	10,000

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	141.5″	16,400	11,200
3.55	141.5″	16,400	11,200
3.55	141.5″	17,900	12,500
3.73	141.5″	18,400	13,100

2021 Ford F-150 Super Cab 5th Wheel Towing

[SuperCab 4X2]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	145.4″	9,700	5,000
3.73	145.4″	12,900	8,200

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	145.4″	14,800	9,800
3.15	164.1″	14,800	9,600
3.31	145.4″	14,800	9,800
3.31	164.1″	14,800	9,600
3.73	145.4″	15,500	10,500
3.73	164.1″	15,600	10,400
3.73	145.4″	17,800	11,900
3.73	164.1″	18,200	12,600
3.73	164.1″	18,300	13,000

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	145.4″	12,600	7,700
3.15	164.1″	12,600	7,600
3.55	145.4″	12,600	7,700
3.55	164.1″	12,600	7,600
3.73	145.4″	13,300	8,400
3.73	164.1″	13,300	8,300
3.73	145.4″	15,000	10,000
3.73	164.1″	15,100	10,000

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,200	10,900
3.31	164.1″	16,500	11,200
3.55	145.4″	16,200	10,900
3.55	164.1″	16,500	11,200
3.55	145.4″	17,500	10,900
3.55	164.1″	19,400	11,700
3.73	164.1″	19,400	14,000

[SuperCab 4X4]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.73	145.4″	13,100	8,100

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	14,800	9,500
3.31	164.1″	14,800	9,400
3.73	145.4″	15,800	10,500
3.73	164.1″	15,800	10,400
3.73	145.4″	17,600	11,500
3.73	164.1″	18,400	11,900
3.73	164.1″	18,500	13,000

3.0L Turbo Diesel V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,300	8,700
3.55	145.4″	16,300	8,700
3.55	145.4″	17,900	8,700

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	145.4″	12,800	7,600
3.73	145.4″	13,300	8,100
3.73	145.4″	15,300	10,100

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,500	10,700
3.31	164.1″	16,800	10,500
3.55	145.4″	16,500	10,700
3.55	164.1″	16,800	10,500
3.55	145.4″	17,700	10,700
3.55	145.4″	19,300	11,900
3.55	164.1″	19,400	10,500
3.73	164.1″	19,400	13,800

2021 Ford F-150 Super Crew 5th Wheel Towing

[Super Crew 4X2]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	145.4″	9,900	5,100
3.73	145.4″	13,000	8,200

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	145.4″	14,800	9,700
3.15	157.2″	14,800	9,600
3.31	145.4″	14,800	9,700
3.31	157.2″	14,800	9,600
3.73	157.2″	15,600	10,400
3.73	145.4″	15,600	10,500
3.73	145.4″	18,100	12,800
3.73	157.2″	18,200	12,200
3.73	157.2″	18,400	13,000

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.15	145.4″	12,700	7,700
3.15	157.2″	12,800	7,800
3.55	145.4″	12,700	7,700
3.55	157.2″	12,800	7,800
3.73	145.4″	13,300	8,300
3.73	157.2″	13,300	8,300
3.73	145.4″	15,100	10,000
3.73	157.2″	15,100	10,000

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,500	10,300
3.31	157.2″	16,600	11,300
3.55	145.4″	16,500	10,300
3.55	157.2″	16,600	11,300
3.55	145.4″	19,300	11,900
3.55	157.2″	19,400	11,600
3.73	157.2″	19,400	14,000

3.5L Hybrid V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	145.4″	16,700	11,000
3.55	157.2″	16,800	11,000
3.55	145.4″	18,400	11,000
3.55	157.2″	18,400	11,200

[Super Crew 4X4]

3.3L PFDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.73	145.4″	13,300	8,200

5.0L 4-Valve V8

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	14,800	9,400
3.31	157.2″	14,800	9,300
3.73	145.4″	15,800	10,400
3.73	157.2″	15,800	10,300
3.73	145.4″	18,400	11,300
3.73	157.2″	18,400	11,500
3.73	157.2″	18,600	13,000

3.0L Turbo Diesel V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,300	8,300
3.31	157.2″	16,300	8,200
3.55	145.4″	16,300	8,300
3.55	157.2″	16,300	8,200
3.55	145.4″	18,000	8,300
3.55	157.2″	18,000	8,200

2.7L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.55	145.4″	12,900	7,700
3.73	145.4″	13,300	8,100
3.73	145.4″	15,400	10,100

3.5L GTDI V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.31	145.4″	16,800	10,600
3.31	157.2″	16,800	10,900
3.55	145.4″	16,800	10,600
3.55	157.2″	16,800	10,900
3.55	145.4″	19,400	10,600
3.55	157.2″	19,400	10,900
3.73	157.2″	19,500	13,800

3.5L Hybrid V6

Axle Ratio	WB	GCWR (lbs.)	Max Tow Capacity (lbs.)
3.73	145.4″	17,000	9,300
3.73	157.2″	17,000	9,100
3.73	145.4″	18,400	9,300
3.73	157.2″	18,400	9,100

2021 Ford F-150 Payload Capacity

[Regular Cab]

Engine	Drive Type	Max. GVWR (lbs.)	Wheelbase	Maximum Payload Weight Ratings (lbs.)
3.3L V6 FFV	4×2	6,010	122″	1,985
	4×2	6,100	141″	1,975
	4×4	6,050	122″	1,775
	4×4	6,325	141″	1,960
2.7L EcoBoost	4×2	6,050	122″	1,875
	4×2	6,170	141″	1,905
	4×2	6,900	141″	2,480*
	4×4	6,150	122″	1,705
	4×4	6,435	141″	1,885
	4×4	6,800	141″	2,125*
5.0L V8 FFV	4×2	6,200	122″	1,900
	4×2	6,750	141″	2,350
	4×2	7,850	141″	3,325**
	4×4	6,400	122″	1,835
	4×4	6,950	141″	2,300
	4×4	7,850	141″	3,050**
3.5L EcoBoost	4×2	7,050	141″	2,620
	4×2	7,850	141″	3,250**
	4×4	7,050	141″	2,360
	4×4	7,850	141″	3,035**

[Super Cab]

Engine	Drive Type	Max. GVWR (lbs.)	Wheelbase	Maximum Payload Weight Ratings (lbs.)
3.3L V6 FFV	4×2	6,250	145″	1,905
	4×4	6,480	145″	1,880
2.7L EcoBoost	4×2	6,325	145″	1,855
	4×2	6,500	164″	1,925
	4×2	6,750	145″	2,175*
	4×2	6,900	164″	2,225*
	4×4	6,500	145″	1,745
	4×4	7,000	145″	2,165*
5.0L V8 FFV	4×2	6,900	145″	2,345
	4×2	7,000	164″	2,325
	4×2	7,850	164″	3,010**
	4×4	7,050	145″	2,240
	4×4	7,150	164″	2,205
	4×4	7,850	164″	2,765**
3.5L EcoBoost	4×2	6,900	145″	2,290
	4×2	7,050	164″	2,285
	4×2	7,850	164″	2,980**
	4×4	7,050	145″	2,190
	4×4	7,150	164″	2,125
	4×4	7,850	164″	2,740**
3.0L Diesel	4×4	7,050	145″	1,840

[Super Crew]

Engine	Drive Type	Max. GVWR (lbs.)	Wheelbase	Maximum Payload Weight Ratings (lbs.)
3.3L V6 FFV	4×2	6,250	145″	1,785
	4×4	6,470	145″	1,765
2.7L EcoBoost	4×2	6,400	145″	1,815
	4×2	6,450	157″	1,830
	4×2	6,650	145″	1,960*
	4×2	6,800	157″	2,085*
	4×4	6,500	145″	1,760
	4×4	7,000	145″	1,965*
5.0L V8 FFV	4×2	6,800	145″	2,135
	4×2	6,950	157″	2,235
	4×2	7,050	157″	2,335**
	4×2	7,850	145″	2,900***
	4×4	7,050	145″	2,135
	4×4	7,150	157″	2,135
	4×4	7,850	157″	2,650***
3.5L EcoBoost	4×2	6750	145″	2,050
	4×2	7,000	157″	2,245
	4×2	7,050	145″	2300**
	4×2	7,850	157″	2,880***
	4×4	7,050	145″	2,100
	4×4	7,150	157″	2,155
	4×4	7,850	157″	2,640***
3.0L Diesel	4×4	7,050	145″	1,805
	4×4	7,100	157″	1,805
3.5L PowerBoost	4×2	7,350	145″	2,090
	4×2	7,350	157″	2,120
	4×4	7,350	145″	1,830
	4×4	7,350	157″	1,810

2021 Ford F-150 Towing Features

• Standard Trailer Sway Control (TSC): It works in conjunction with the AdvanceTrac with RSC (Roll Stability Control™) system to expand the vehicle’s dynamic stability control capabilities, adding an additional layer of confidence and control while towing a trailer.
• Standard Tow/Haul Mode: It reduces gear hunting, and improves power delivery. Especially useful with hauling or towing a heavy load.
• Standard Hill Start Assist: It helps prevent rolling back on a grade by momentarily maintaining brake pressure until the engine delivers enough torque to move the truck up the hill
• Available Technology Package: The technology package includes a 360-degree camera with a split-view display, dynamic hitch assist, and active park assist (Standard on the F-150 Limited model).
• Available Trailer Brake Controller (TBC): TBC uses braking input, vehicle speed, and ABS logic to balance the performance of the truck brakes and electric trailer brakes. Fully integrated into the instrument panel and vehicle’s onboard computer
• Available Pro Trailer Backup Assist: It is an available feature that improves driver confidence by letting the driver steer the trailer instinctively as they control the accelerator and brakes, while the truck takes care of the rest.
• Blind Spot Information System (BLIS): BLIS is a technology that provides cross-traffic, and trailer tow monitoring alerts to the driver. It is Standard on Lariat, King Ranch, Platinum, and Limited whereas it is also available for XLT and Raptor variants.

Next Post: 2022 Ford F-150 towing capacity
