The 2022 Chevy Colorado is the smallest and most affordable mid-size truck with fantastic performance specs and impressive capabilities. Add in truck-proven technologies like Electric Power Steering, Electronic Stability Control System, and Auto Grade Braking, along with a comfortable interior pickup is its ability to haul heavy cargo, with a towing capacity maxing out at 7,700 pounds.
The 2022 Chevy Colorado’s towing capacity depends on the engine and configuration. With the base-level model, you’ll have more than enough power to tow a small pop-up camper or a lightweight fishing boat, and when properly equipped with the optional diesel engine, it can tow up to 7,700 pounds giving you the ability to handle a lot more weight.
Table of Contents
2022 Chevy Colorado towing capacity chart
| 2022 Chevy Colorado trim levels | 2022 Chevy Colorado towing capacity |
| Chevy Colorado WT | 3,500 – 7,700 lbs. |
| Chevy Colorado LT | 3,500 – 7,700 lbs. |
| Chevy Colorado Z71 | 7,700 lbs. |
| Chevy Colorado ZR2 | 5,000 lbs. |
2022 Chevy Colorado Engine options
There are three engine options on the 2022 Chevy Colorado: a standard 2.5L 4-cylinder, a 2.8L Turbo-Diesel, and a 3.6L V6 available for upgrade. In order to maximize your Chevy Colorado towing and payload capacity, you’ll have to choose certain Colorado trim configurations equipped with certain engines. The diesel-powered Colorado hauls the most. Meanwhile, the V6-powered model offers the highest available towing capacity.
- Standard 2.5L 4-Cylinder: The standard engine makes 200 horsepower and 191 lb.-ft. of torque and has the power to tow up to 3,500 pounds.
- Available 3.6L DOHC V6: Upgrading to the available 3.6L V6 option gets you 308 hp and 275 pound-feet of torque along with up to 7,000 maximum towing capacity with the available V6 Trailering Package.
- Duramax® 2.8L Turbo-Diesel: The available 2.8L Duramax® diesel engine offers the maximum 7,700-pound towing capacity and makes 181 hoses and 369 pound-feet of peak torque.
| Engine | 2.5L DOHC I-4 | 3.6L DOHC V6 | DURAMAX 2.8L TURBO-DIESEL I-4 |
| Horsepower | 200 hp @ 6,300 rpm | 308 hp @ 6800 rpm | 181 hp @ 3400 rpm |
| Torque | 191 lb.-ft. @ 4,400 rpm | 275 lb.-ft. @ 4,000 rpm | 369 lb.-ft. @ 2000 rpm |
| Bore and stroke | 88 mm x 101 mm (3.46 in. x 3.97 in.) | 95 mm x 85.6 mm (3.74 in. x 3.37 in.) | 94 mm x 100 mm (3.70 in. x 3.94 in.) |
| Compression ratio | 11.3:1 | 11.5:1 | 16.5:1 |
| Max payload rating | 1,420 lbs. | 1,540 lbs. | 1,480 lbs. |
| Max trailering weight rating | 3,500 lbs. | 7,000 lbs. | 7,700 lbs. |
2022 Chevy Colorado towing capacity
The maximum 7,700 pounds towing capacity on the Chevy Colorado is achieved when you choose the Duramax 2.8L Turbo-Diesel engine with four-wheel drive, combined with the extended cab and long box configuration. However, even if you don’t choose this particular configuration, you’ll still enjoy strong towing numbers with the other engine and drivetrain options. In addition to impressive numbers, every model also comes with the 2022 Chevy Colorado towing package, a suite of features designed to make hauling cargo smooth, safe, and convenient.
| Engine | Axle Ratio | GCWR (lbs.) | Maximum Trailer Weight (lbs.) |
| 2.5L L4 | 4.10 | 8,500 | 3,500 |
| 3.6L V6 | 3.42 | 12,000 | 7,000 |
| 3.6L V6 | 3.42 | 10,300 | 5,000 |
2022 Chevy Colorado Towing Package
If you plan on doing any heavy lifting, it’s a very good idea to equip the 2022 Chevy Colorado towing package. This package offers more than a hitch and a receiver it sets you up for towing success with a four-way sealed connector for your brake hookups and an automatic locking rear differential.
- Automatic Locking Rear Differential.
- 4-Way Sealed Connector for Use on Trailers Without Brakes to Hook Up Brake Lamps, Parking Lamps, and Turn Signals.
- 7-Wire Electrical Harness and 7-Pin Sealed Connector for Connecting Your Trailer’s Lights and Brakes to Your Vehicle.
- 2-Inch Receiver Hitch, 4-Pin, and 7-Pin Connectors.
- Hitch guidance.
- Trailer brake controller.
- Tow/Haul mode.
2022 Chevy Colorado trims
The 2022 Chevrolet Colorado comes in several trim levels with different exterior and interior engineering features. The WT, LT, Z71, and ZR2 trims have a standard chassis built for comfortable driving on pavement. Based on the weight of the chosen trim series and option content, the towing capacity of Colorado with the finest options may be decreased. Get more information about the 2022 Chevrolet Colorado’s towing specs and capabilities below.

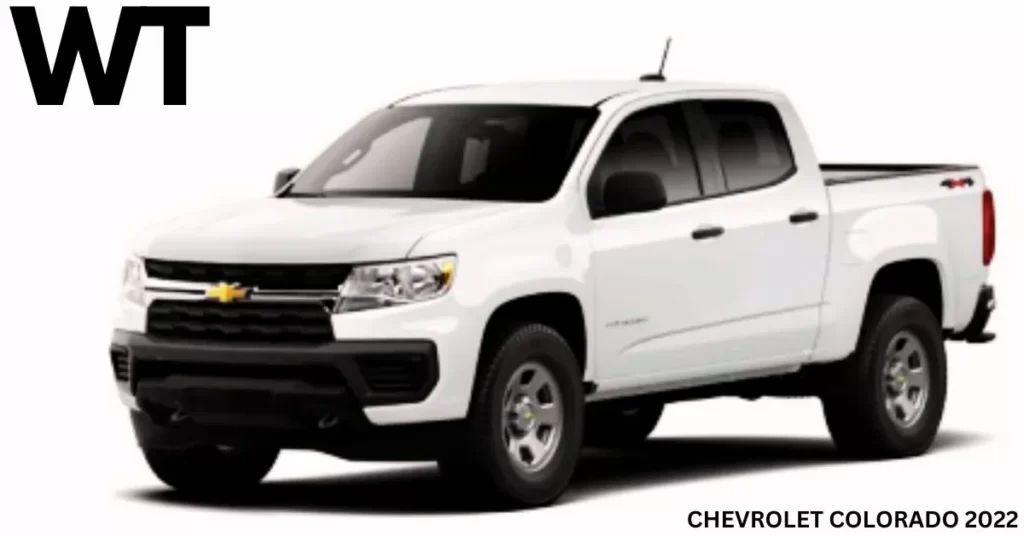

2022 Chevy Colorado WT towing capacity
| Cab Style | Drive Type | Max Payload Rating (lbs.) | Max trailering weight rating (lbs.) |
| Extended Cab | 2WD 4X4 | 1,530 1,500 | 7,000 7,700 |
| Crew Cab Short Box | 2WD 4X4 | 1,540 1,530 | 7,000 7,600 |
| Crew Cab Long Box | 2WD 4X4 | 1,480 1,460 | 7,000 7,600 |

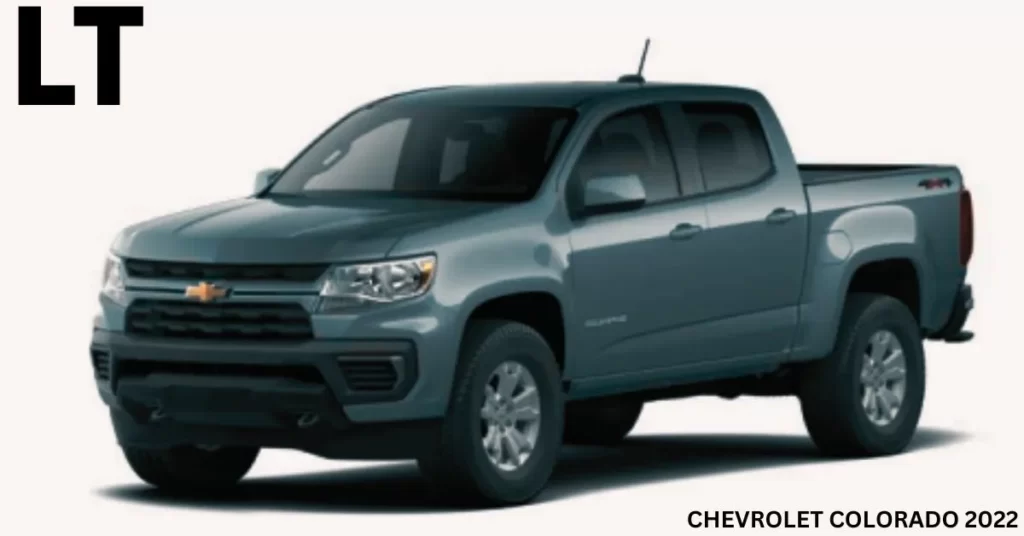

2022 Chevy Colorado LT towing capacity
| Cab Style | Drive Type | Max Payload Rating (lbs.) | Max trailering weight rating (lbs.) |
| Extended Cab | 2WD 4X4 | 1,540 1,490 | 7,000 7,000 |
| Crew Cab Short Box | 2WD 4X4 | 1,540 1,500 | 7,700 7,600 |
| Crew Cab Long Box | 2WD 4X4 | 1,480 1,450 | 7,000 7,600 |
2022 Chevy Colorado Z71 towing capacity
| Cab Style | Drive Type | Max Payload Rating (lbs.) | Max trailering weight rating (lbs.) |
| Extended Cab | 4X4 | 1,460 | 7,000 |
| Crew Cab Short Box | 2WD 4X4 | 1,490 1,450 | 7,700 7,600 |
| Crew Cab Long Box | 4X4 | 1,400 | 7,600 |
2022 Chevy Colorado ZR2 towing capacity
| Cab Style | Drive Type | Max Payload Rating (lbs.) | Max trailering weight rating (lbs.) |
| Extended Cab | 4X4 | 1,350 | 5,000 |
| Crew Cab Short Box | 4×4 | 1,240 | 5,000 |
Maximum trailering ratings are intended for comparison purposes only. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The trailering capacity of your specific vehicle may vary. The weight of passengers, cargo and options or accessories may reduce the amount you can trailer. Safety or driver assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. Also, read the vehicle Owner’s Manual for important feature limitations and information.
2022 Chevy Colorado Dimensions
| Dimensions | Extended Cab | Crew Cab |
| A – Wheelbase | 128.3″ 128.5″ – ZR2 | 128.3″ – Short Box 128.5″ – ZR2 140.5″ – Long Box |
| B – Height | 70.4″ – 2WD 70.3″ – 4×4 72.4″ – ZR2 | 70.7″ – 2WD Short Box 70.6″ – 2WD Long Box, 4×4 Short Box 70.5″ – 4×4 Long Box 72.5″ – ZR2 |
| C – Width | 62.4″ 65.9″ – ZR2 | 62.4″ 65.9″ – ZR2 |
| D – Length | 212.7″ 212.4″ – ZR2 | 212.7″ – Short Box 212.7″ – ZR2 224.9″ – Long Box |
| E – Inside width between wheel housings | 44.4″ | 44.4″ |
| F – Inside bed length at floor | 74.0″ | 61.7″ – Short Box 74.0″ – Long Box |
| G – Bed width wall to wall | 57.8″ | 57.8″ |
Explore more: 2023 Chevrolet Colorado towing capacity.
Conclusion
With different engine options and towing packages available, Colorado can tow up to 7,700 pounds when properly equipped. However, it’s important to consider factors such as cargo type, travel distance, terrain, and future needs when selecting the best towing capacity option. When compared with other trucks in its class, Colorado’s towing capacity is competitive and offers a great balance of power and efficiency. Overall, the 2022 Chevrolet Colorado’s towing capacity is that it provides a range of options to choose from to suit different towing needs. Whether it’s for work or play, Colorado can handle a wide range of towing tasks, making it a versatile and reliable midsize truck.
