The 2019 Chevy Colorado mid-size pickup segment, along with some robust engine power, the truck can handle some serious work on the job site. The vehicle towing specs are perfect for those who like to play hard and you can easily haul cargo through a work zone. In this article, learn more about the Chevy Colorado towing and performance specs and take a closer look at the other configurations.
The 2019 Chevrolet Colorado’s towing capacity will be more than sufficient for weekend adventures and daily workloads alike. In its baseline configuration, without any add-ons, Colorado can already tow up to 3,500 pounds. Upgrade with the Duramax turbodiesel to reach a maximum of 7,700 pounds when properly equipped.
Table of Contents
2019 Chevy Colorado towing capacity chart
| 2019 Chevy Colorado trim levels | 2019 Chevy Colorado towing capacity |
| Chevy Colorado Base | 3,500 – 7,700 lbs. |
| Chevy Colorado WT | 3,500 – 7,700 lbs. |
| Chevy Colorado LT | 3,500 – 7,700 lbs. |
| Chevy Colorado Z71 | 7,700 lbs. |
| Chevy Colorado ZR2 | 5,000 lbs. |
2019 Chevy Colorado Engine Options
Different jobs require different configurations of power. That’s why the Colorado lineup features three unique engine options to deliver the proper performance you need. Here’s a breakdown of each configuration available:
2.5L Inline 4-Cylinder: This engine offers 200 horsepower at 6,300 rpm this Direct Fuel Injection DOHC engine design features 191 lb-ft of torque at 4,400 rpm. Variable Valve Timing technology optimizes the performance and efficiency of this 2.5L engine. A six-speed automatic transmission provides smooth shifting with 3,500 pounds of towing capacity.
3.6L V6: With 308 horsepower at 6,800 rpm, and also boasting 275 lb-ft of torque at 4,000 rpm, this Dual Overhead Camshaft V6 is a very capable workhorse. Direct Fuel Injection and Variable Valve Timing technology optimize the efficiency and performance of the V6 engine. With a convenient Tow/Haul mode for easy hauling, and select configurations, this V6 engine can handle up to 7,000 pounds of towing capacity.
2.8L Duramax Turbo-Diesel: Duramax has earned its reputation for making efficient and powerful turbo-diesel engines featuring 181 horsepower at 3,400 rpm and 369 lb-ft of torque at 2,000 rpm, this DOHC inline four-cylinder holds its own. A 2.8L Duramax engine is available with select configurations, this Duramax powerplant can handle up to 7,700 pounds of towing capacity.
2019 Chevy Colorado towing capacity
The maximum 7,700 pounds towing capacity on the Chevy Colorado is achieved when you choose the Duramax 2.8L Turbo-Diesel engine with four-wheel drive, combined with the extended cab and long box configuration. However, even if you don’t choose this particular configuration, you’ll still enjoy strong towing numbers with the other engine and drivetrain options. In addition to impressive numbers, every model also comes with the 2019 Chevy Colorado towing package, a suite of features designed to make hauling cargo smooth, safe, and convenient.
| Engine | Axle Ratio | GCWR (lbs.) | Maximum Trailer Weight (lbs.) |
| 2.5L L4 | 4.10 | 8,500 | 3,500 |
| 3.6L V6 | 3.42 | 12,000 | 7,000 |
| 3.6L V6 (ZR2) | 3.42 | 10,300 | 5,000 |
2019 Chevy Colorado towing capacity without trailering package
2019 Chevy Colorado Crew Cab towing capacity
| Engine | GCWR (lbs.) | Short Box 2WD (lbs.) | Short Box 4WD (lbs.) |
| 2.5L 4-cylinder | 8,500 | 3,500 | NA |
| 3.6L V6 | 12,000 | 3,500 | 3,500 |
| Engine | GCWR (lbs.) | Long Box 2WD (lbs.) | Long Box 4WD (lbs.) |
| 3.6L V6 | 12,000 | 3,500 | 3,500 |
2019 Chevy Colorado Extended Cab towing capacity
| Engine | GCWR (lbs.) | Long Box 2WD (lbs.) | Long Box 4WD (lbs.) |
| 2.5L 4-cylinder | 8,500 | 3,500 | 3,500 |
| 3.6L V6 | 12,000 | 3,500 | 3,500 |
2019 Chevy Colorado Towing Package
Tow with confidence with integrated features on the 2020 Chevy Colorado. If you plan on doing any heavy lifting, it’s a very good idea to equip Colorado with a trailering towing package. One of the top features is a hitch guidance component to the rear vision camera. On your screen, a guiding line shows when hitch guidance is in use and eases the process of centering the hitch ball and trailer coupler. This package offers more than a hitch and a receiver it sets you up for towing success with a four-way sealed connector for your brake hookups.
- Automatic Locking Rear Differential.
- Trailer Hitch.
- Hitch Receiver, and 7-Pin Connectors.
- Hitch guidance.
- Trailer brake controller.
- Tow/Haul mode.
2019 Chevy Colorado towing capacity with Trailering Package
2019 Chevy Colorado Crew Cab towing capacity
| Engine | GCWR (lbs.) | Short Box 2WD (lbs.) | Short Box 4WD (lbs.) |
| 3.6L V6 | 12,000 | 7,000 | 7,000 |
| Duramax 2.8L Turbo-Diesel 4-cylinder | 12,700 | 7,700 | 7,600 |
| 3.6L V6 (ZR2) | 10,300 | NA | 5,000 |
| Duramax 2.8L Turbo-Diesel 4-cylinder (ZR2) | 10,700 | NA | 5,000 |
| Engine | GCWR (lbs.) | Long Box 2WD (lbs.) | Long Box 4WD (lbs.) |
| 3.6L V6 | 12,000 | 7,000 | 7,000 |
| Duramax 2.8L Turbo-Diesel 4-cylinder | 12,700 | 7,700 | 7,550 |
2019 Chevy Colorado Extended Cab towing capacity
| Engine | GCWR (lbs.) | Long Box 2WD (lbs.) | Long Box 4WD (lbs.) |
| 3.6L V6 | 12,000 | 7,000 | 7,000 |
| 3.6L V6 (ZR2) | 10,300 | NA | 5,000 |
| Duramax 2.8L Turbo-Diesel 4-cylinder (ZR2) | 10,700 | NA | 5,000 |
Maximum trailering ratings are intended for comparison purposes only. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The trailering capacity of your specific vehicle may vary. The weight of passengers, cargo and options or accessories may reduce the amount you can trailer. Safety or driver assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. Also, read the vehicle Owner’s Manual for important feature limitations and information.

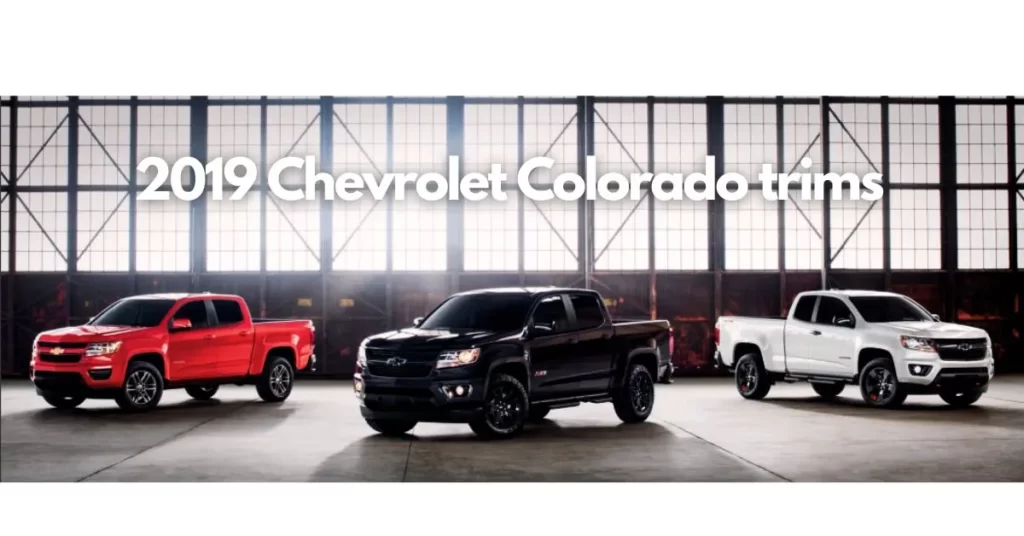

2019 Chevy Colorado trims
The 2019 Chevrolet Colorado comes in several trim levels Base, WT, LT, Z71, and ZR2 trims have a standard chassis built for comfortable driving on pavement. Based on the weight of the chosen trim series and option content, the towing capacity of Colorado with the finest options may be decreased. The right setup is needed to max out your pickup towing capabilities, but each of the unique trim levels offers muscular attributes. Here’s the performance output you can expect from the various Chevy Colorado configurations:
2019 Chevy Colorado Base towing capacity
The base Chevy Colorado highlighted features are rear, chrome with CornerStep, integrated with center high-mounted stop lamp, manual-adjustable, manual-folding with Blackcaps, Electronic Stability Control System with Traction Control, manual single-zone air conditioning, halogen, automatic on/off with automatic delay and daytime running lamps. The towing capacity of Colorado Base ranges from 3,500 to 7,700 pounds, depending on engine configuration and axle ratio.
2019 Chevy Colorado WT towing capacity
| Cab Type | Extended Cab with a 6’2” box (lbs.) | Crew Cab with a 5’2″ box (lbs.) | Crew Cab Extended Cab with a 6’2” box (lbs.) |
| Curb Weight | 3,986 – 2.5L 2WD (manual) 3,946 – 2.5L 2WD (auto.) 4,383 – 2.8L 2WD 4,627 – 2.8L 4WD 4,110 – 3.6L 2WD 4,335 – 3.6L 4WD | 4,028 – 2.5L 2WD 4,457 – 2.8L 2WD 4,694 – 2.8L 4WD 4,194 – 3.6L 2WD 4,424 – 3.6L 4WD | 4,518 – 2.8L 2WD 4,753 – 2.8L 4WD 4,253 – 3.6L 2WD 4,476 – 3.6L 4WD |
| GVWR | 5,400 – 2.5L 2WD 5,900 – 2.8L 2WD 6,100 – 2.8L 4WD 5,700 – 3.6L 2WD 5,900 – 3.6L 4WD | 5,500 – 2.5L 2WD 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD | 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD |
| Max Payload | 1,382 – 2.5L 2WD (manual) 1,422 – 2.5L 2WD (auto.) 1,485 – 2.8L 2WD 1,441 – 2.8L 4WD 1,557 – 3.6L 2WD 1,532 – 3.6L 4WD | 1,440 – 2.5L 2WD 1,511 – 2.8L 2WD 1,474 – 2.8L 4WD 1,574 – 3.6L 2WD 1,547 – 3.6L 4WD | 1,450 – 2.8L 2WD 1,415 – 2.8L 4WD 1,515 – 3.6L 2WD 1,492 – 3.6L 4WD |
| Max Trailering 2WD | 3,500 – 2.5L 7,700 – 2.8L 7,000 – 3.6L | 3,500 – 2.5L 7,700 – 2.8L 7,000 – 3.6L | 7,700 – 2.8L 7,000 – 3.6L |
| Max Trailering 4WD | 3,500 – 2.5L 7,700 – 2.8L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L |
2019 Chevy Colorado LT towing capacity
| Cab Type | Extended Cab with a 6’2” box (lbs.) | Crew Cab with a 5’2″ box (lbs.) | Crew Cab Extended Cab with a 6’2” box (lbs.) |
| Curb Weight | 3,936 – 2.5L 2WD 4,102 – 3.6L 2WD 4,341 – 3.6L 4WD | 4,030 – 2.5L 2WD 4,472 – 2.8L 2WD 4,709 – 2.8L 4WD 4,196 – 3.6L 2WD 4,435 – 3.6L 4WD | 4,539 – 2.8L 2WD 4,774 – 2.8L 4WD 4,260 – 3.6L 2WD 4,496 – 3.6L 4WD |
| GVWR | 5,400 – 2.5L 2WD 5,700 – 3.6L 2WD 5,900 – 3.6L 4WD | 5,500 – 2.5L 2WD 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD | 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD |
| Max Payload | 1,432 – 2.5L 2WD 1,566 – 3.6L 2WD 1,527 – 3.6L 4WD | 1,438 – 2.5L 2WD 1,496 – 2.8L 2WD 1,459 – 2.8L 4WD 1,572 – 3.6L 2WD 1,533 – 3.6L 4WD | 1,429 – 2.8L 2WD 1,394 – 2.8L 4WD 1,508 – 3.6L 2WD 1,472 – 3.6L 4WD |
| Max Trailering 2WD | 3,500 – 2.5L 7,000 – 3.6L | 3,500 – 2.5L 7,700 – 2.8L 7,000 – 3.6L | 7,700 – 2.8L 7,000 – 3.6L |
| Max Trailering 4WD | 3,500 – 2.5L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L |
2019 Chevy Colorado Z71 towing capacity
| Cab Type | Extended Cab with a 6’2” box (lbs.) | Crew Cab with a 5’2″ box (lbs.) | Crew Cab Extended Cab with a 6’2” box (lbs.) |
| Curb Weight | 3,995 – 2.5L 2WD 4,136 – 3.6L 2WD 4,374 – 3.6L 4WD | 4,030 – 2.5L 2WD 4,472 – 2.8L 2WD 4,709 – 2.8L 4WD 4,196 – 3.6L 2WD 4,435 – 3.6L 4WD | 4,569 – 2.8L 2WD 4,802 – 2.8L 4WD 4,295 – 3.6L 2WD 4,529 – 3.6L 4WD |
| GVWR | 5,400 – 2.5L 2WD 5,700 – 3.6L 2WD 5,900 – 3.6L 4WD | 5,500 – 2.5L 2WD 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD | 6,000 – 2.8L 2WD 6,200 – 2.8L 4WD 5,800 – 3.6L 2WD 6,000 – 3.6L 4WD |
| Max Payload | 1,373 – 2.5L 2WD 1,532 – 3.6L 2WD 1,494 – 3.6L 4WD | 1,366 – 2.5L 2WD 1,457 – 2.8L 2WD 1,422 – 2.8L 4WD 1,525 – 3.6L 2WD 1,487 – 3.6L 4WD | 1,399 – 2.8L 2WD 1,366 – 2.8L 4WD 1,473 – 3.6L 2WD 1,439 – 3.6L 4WD |
| Max Trailering 2WD | 3,500 – 2.5L 7,000 – 3.6L | 3,500 – 2.5L 7,700 – 2.8L 7,000 – 3.6L | 7,700 – 2.8L 7,000 – 3.6L |
| Max Trailering 4WD | 3,500 – 2.5L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L | 7,600 – 2.8L 7,000 – 3.6L |
2019 Chevy Colorado ZR2 towing capacity
If you decide that the high-end Colorado ZR2 trim is perfect for your adventures, you will have a maximum towing capacity of 5,000 pounds. This is certainly more than enough power to trailer all of your recreational gear on your next excursion.
Explore more: 2023 Chevrolet Colorado towing capacity. 2022 Chevrolet Colorado towing capacity. 2021 Chevrolet Colorado towing capacity. 2020 Chevrolet Colorado towing capacity.
Conclusion
In conclusion, the 2019 Chevy Colorado has a towing capability that varies based on the configuration from 3,500 to 7,000 pounds. Towing capability is influenced by a number of variables, including the vehicle’s GVWR, curb weight, engine power, transmission, axle ratio, suspension, and tires. You can increase the towing capacity and ensure safe and effective towing by selecting the proper configuration and following safety regulations. To get what you can out of your vehicle, whether you’re a current owner or a potential buyer, you must be aware of its towing capabilities.
